- Operating Frequency (Traditional Sonar): 200kHz
- Operating Frequency (DownScan Sonar): 455kHz/800kHz
- Operating Frequency (SideScan Sonar): 455kHz/800kHz
- Output: Depth and Temperature
- Beam Width (Traditional): 44°@ 200kHz
- Beam Width (DownScan): 55/3° @ 455 kHz, 35/1.6° @ 800 kHz
- Beam Width (SideScan): 55/0.8° @ 455 kHz, 35/0.5° @ 800 kHz
- Max Depth (Traditional): 152M (500') @ 200kHz
- Max Depth(DownScan): 91M (300') @455kHZ, 46M (150') @800kHz
- Max Depth (SideScan): 183M (600') Side to Side @ 455kHz, 91M (300') Side to Side @ 800kHz

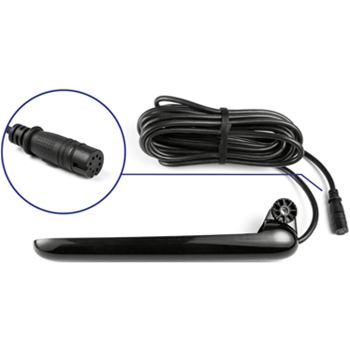

- Includes: 20' of Tranducer Cable and Transom Mount Mounting kit
- Transducer Dimensions 10"L x 1.5"W x 1"H
Product Accessories for Lowrance TripleShot Transducer for HOOK2 and HOOK Reveal
PropSpeed's FoulFree Transducer Coating Kit is the biggest advancement in transducer paint and coatings in the last 30 years. It will keep your thru-hull or transom mount transducer free of marine growth. This nontoxic formula has zero leaching of harmful chemicals into water unlike traditional anti-fouling bottom paints and is certified by Airmar.
Lowrance 10' Transducer Extension for Hook2 SplitShot and TripleShot Transducers. Compatible with Lowrance Hook2/Hook Reveal 5", 7" and 9" Splitshot and TripleShot GPS / Fishfinders as well as 5", 7" and 9" Simrad Cruise Units.
