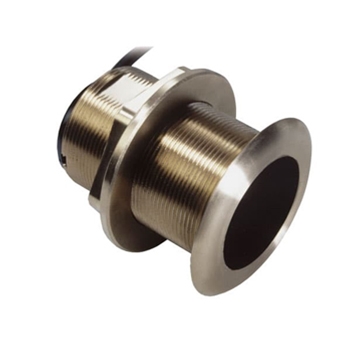

The Navico B60 is a 600W, 50/200 kHz low profile bronze transducer that provides traditional sonar. The B60 XSONIC is compatible with Navico (Lowrance and Simrad) displays with sonar support and black 9-pin XSONIC connections.
Mounting Style: Low Profile Tilted Element Thru Hull
Deadrise: 12-Degree, Suitable for 8-15 Degrees

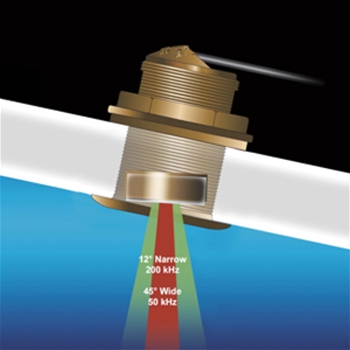

Frequency Range: Traditional Dual Frequency 50/200kHz
Power Output: 600W
Max Depth: 1200 ft. in ideal water conditions, best case scenario.
Transducer Functions: Depth and Water-Temperature
Cable Length: 30-feet (10M)
Transducer Material: Bronze
Connector Style: 9-Pin XSONIC
Ideal for: Fiberglass or Wood hulls, center console or trailered boats.
Product Accessories for Navico XSONIC B60 Bronze Thru-Hull Transducer 12-Degree
Navico Xsonic, StructureScan and TotalScan 10' Transducer Extension Cable
10' Transducer Extension Cable for X Sonic transducers, LSS1, LSS2 Structure Scan, TotalScan and 3-in-1 Transducers.
Navico 9-Pin Transducer to 7-Pin Display Adapter Cable
The 9-to-7-Pin Transducer Adapter enables xSonic 9-pin transducers to connect to legacy 7-pin displays.
