Garmin GHP Reactor 40 Designed for Single Engine Outboards Less than 25 Feet
Garmin created the GHP Compact Reactor 40 Hydraulic Autopilot for the smaller sized, single engine outboard. With its 9 Axis AHRS the GHP Compact Reactor 40 Hydraulic Autopilot allows for more flexible mounting and minimizes heading error and rudder movement making for a more comfortable ride even in rolling and pitching seas, the GHP Compact Reactor Hydraulic Autopilot actually reacts to sea conditions.
The Compact Reactor like with all autopilots, requires commissioning and calibration. Calibration of the GHP Compact Reactor 40 Hydraulic Autopilot it has been reduced to the absolute minimum. When added to a NMEA 2000 Garmin system the GHP Compact Reactor Hydraulic Autopilot can be controlled virtually everywhere on the boat with up to 3 Garmin autopilot control heads. When used with a Garmin’s G3 Vision charts you gain optional features like Auto Guidance, which automatically steers the GPS paths.
The included Garmin GHC 50 Marine Autopilot Instrument allows you to navigate with ease! The GHC 50 has an intuitive design and sunlight readable 5" touchscreen with edge-to-edge glass display, matching GPSMAP x3 and GPSMAP 8600 series displays. The high-resolution (800 x 480) WVGA display provides a top notch viewing experience in any marine conditions. The included Shadow Drive automatically disengages the autopilot if the helm is turned.
Not recommended for fishing or applications that require holding heading while trolling at low speeds or operating in rough waters. For applications that require precise heading control, the higher-performance Reactor 40 models are recommended. Compact Reactor uses a gear pump design with limited performance relative to similar flow piston pumps. Not recommended for power assist installs, boats over 25 feet, engines above 150 horsepower or boats with more than 12-degree deadrises. Mount pump within 6’ of the steering cylinder for best results.

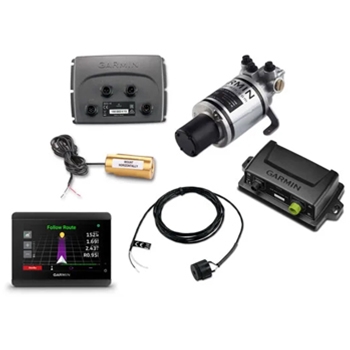

- Reactor 40 CCU (Course Computer Unit)
- Shadow Drive
- GHC™ 50 helm control display
- 1.0L Pump
- ECU (Electronic Control Unit)
- ECU Power Cable
- Interconnect Cable
- NMEA 2000® drop cables (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Two-Year Manufacturer Warranty
- Designed for Boats Less than 25'
- Entry-Level Autopilot
- Minimal Setup
- Reacts to Sea conditions
Product Accessories for Garmin Compact Reactor 40 Hydraulic Autopilot with Shadow Drive and GHC 50
Garmin NMEA 2000 Starter Kit
The Garmin NMEA 2000 Starter Kit comes with all of the parts you need to start a NMEA2000 Marine Network.
Garmin NMEA 2000 Backbone/Drop Cable 2 Meter
This cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter
Garmin NMEA 2000 Micro T-Connector
The Garmin NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone cable and uses one end of the T-Connector for the drop cable.
Si-Tex Hydraulic Kit for Autopilots
Si-Tex Hydraulic Autopilot Hose Kit with Fittings, Part Number OC17SUK42.
Garmin NMEA 2000 Female Terminator
The Garmin NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Garmin NMEA 2000 Backbone Cable 6 Meter
This Garmin cable can be used as your NMEA 2000 backbone or drop cable. Length: 6 Meters.
Garmin NMEA 2000 Male Terminator
The Garmin NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Garmin Reactor Autopilot Remote Control
Control your Garmin Reactor Autopilot right from a remote. This rugged and water resistant remote provides the ultimate onboard control and convenience. Control steering and even use the remote for heading hold and course corrections! (compatible with Compact Reactor, Reactor 40 Steer by Wire and Reactor 40 Hydraulic)
Garmin NMEA 2000 Backbone Cable 10 Meter
This Garmin cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
Garmin NMEA 2000 Power Cable
The Garmin NMEA 2000 Power Cable is used to power your NMEA 2K network through a standard NMEA2000 T-Connector.
Garmin Verado Adapter Kit
The Garmin Verado Adapter Kit is used for plumbing your Garmin Hydraulic Autopilot to your Mercury Verado Engine Steering System.
Garmin SeaStar Fittings Kit
The Garmin SeaStar Fittings Kit is used for plumbing your Garmin Hydraulic Autopilot to most SeaStar Steering System.
