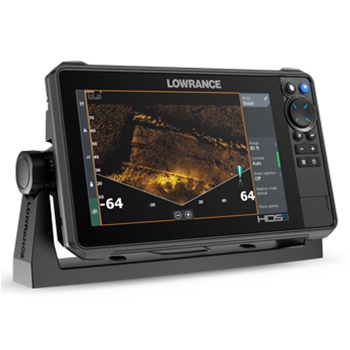

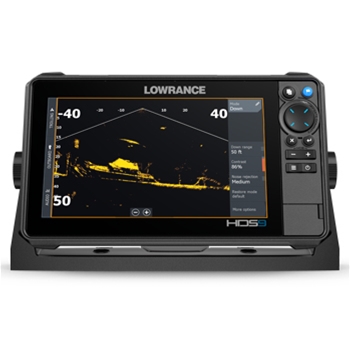

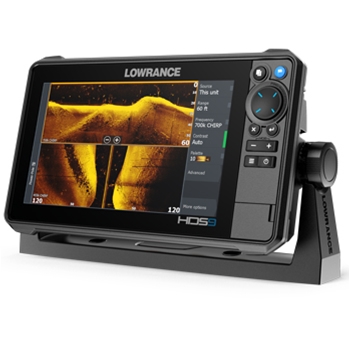

Lowrance HDS PRO 9 with Active Imaging HD 3-in-1 Transducer

Free Ground Shipping!

Lowrance HDS PRO 9 with Active Imaging HD 3-in-1 Transducer

The heart of the Ultimate Fishing System! The HDS PRO 9 features a 9-inch SolarMAX HD display, ideal for displaying enhanced Active Imaging HD sonar and preloaded CMAP OnBoard charts. Full Lowrance network support allows for easy control of additional onboard systems!
Order an HDS LIVE or Pro Display and Additional Qualifying Lowrance Components Now Through April 30th, 2023 and Receive Up To $800 in Savings via Rebate from Lowrance! Click here for Full Lowrance Ultimate Fishing System Upgrade Event Details.
  • SKUNV15981001
  • MAN#000-15981-001
  • ID#: 7364
(Rating 90)
Our Price:
$2,199.00
Availability:
Backorder,
Expected 2/23/2023
Shipping:
Free Ground Shipping!
Condition:
Brand New

9” SolarMAX HD Display with Active Imaging HD Sonar

“See more and catch more” with Lowrance’s HDS PRO! Designed around a 9” Solar-Max HD display offering a 1280x720 resolution, fish, structure and are targets are displayed in exceptional quality and clarity. See detail from any angle, in direct sunlight and even with polarized glasses!

Navionics Compatible CMAP Compatible

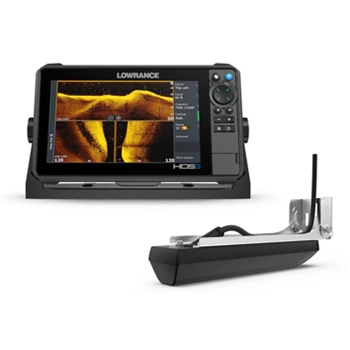

Paired with the Active Imaging HD ¬3-in-1 Fish Reveal transom mount transducer, the HDS PRO provides exceptional clarity and detail of fish and structure below and to the sides of your boat. Offering Med/High CHIRP Sonar, DownScan HD with FishReveal and SideScan HD with FishReveal* this all in one transducer shows detailed images of fish and fish holding structures such as rockpiles, standing timer, weedbeds and more making distinguishing what lies below simple! With DownScan and SideSCan HD you can now see Fish and Structure in near photo like detail while the FishReveal* technology provides an enhanced view and clarity allowing you to better identify fish targets! (*S3100 Sonar Module required for FishReveal SideScan, Not Included and Sold Separately.)

Built to withstand the elements, the HDS 9 is a top choice for a combination GPS/Fishfinder. An internal 10Hz GPS antenna quickly and efficiently locates and keeps your position and shows you moving along the included C-Map charting. C-Map Discover OnBoard charts are preloaded on each HDS Pro featuring high-res bathymetric 1 foot contours for over 19,000 US lakes and 9,400 Canadian Lakes. Custom Depth Shading on all lakes enables you to spend more time fishing and less time analyzing your charts! In addition, full featured vector charts, fishing points of interest and tide and current information is also included for Coastal waters. The HDS Pro even offers Chart overlay allowing you to view Active Target Scout Mode or Ghost 360 Trolling Motor Mode right on the chart screen! Optional C-Map Reveal, Genesis, Navionics Nav+ and Platinum Plus as well as charts from Florida Marine Tracks are also available for additional/enhanced mapping and pop right into one of the two microSD card slots.

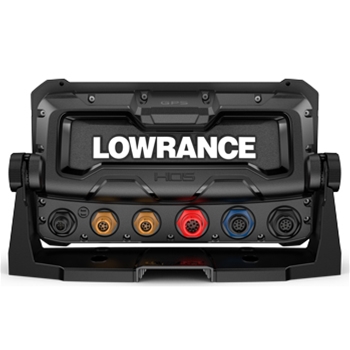

Fully networkable and compatible with Halo 20, 20+ and 24 as well as Halo Open Array Radars, the HDS PRO 9 is a powerhouse of functionality and advanced features. With 2 Ethernet network ports you can choose to add multiple displays, radar, sonar and more. With simple plug and play connections expanding your suite has never been easier! Plus, since the PRO 9 is NMEA 2000 compatible, it’s very simple to view engine data as well as other numerical data from other compliant devices you have on your NMEA network. Customize your MFD to suit your needs. With 3,000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per Trail this unit has it all. For an advanced fishing setup look no further than the HDS 9 PRO.

Lowrance HDS PRO 9 with Active Imaging HD 3-in-1 Transducer Box Contents

Each Lowrance HDS PRO 9 with Active Imaging HD 3-in-1 Transducer Comes with:
  • 000-16062-001 ActiveImaging™ HD 3-in-1 Transducer
  • 000-0127-49 Lowrance Power/0183 Cable
  • 000-14589-001 HDS-9 PRO Bracket and Knobs
  • 000-10467-001 Gimbal Bracket Knobs
  • 000-14585-001 HDS-9 PRO Suncover
  • 2 Year + 3 Additional Years of Upgrade Options, Totaling 5 year Warranty

Lowrance HDS PRO 9 with Active Imaging HD 3-in-1 Transducer Key Features

  • SolarMAX HD Touchscreen
  • Preloaded CMAP DISCOVER OnBoard Charts
  • NMEA 2000, Wireless and Bluetooth Connectivity
  • Wide Range of Optional Chart Upgrades
  • Touchscreen Control of Optional Add-On’s Like Ghost Trolling Motor, Autopilot, etc.
  • Size: 11.02"W x 6.56"H x 3.06“D
