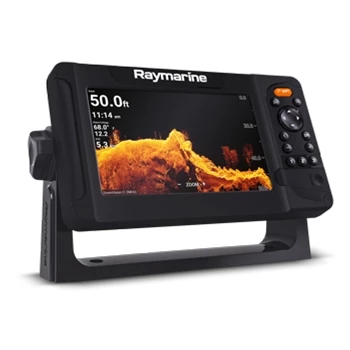

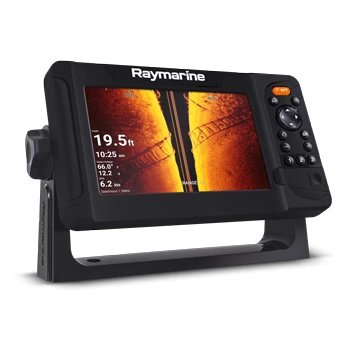

7” Rugged Display with Exceptional Underwater Images.
The Raymarine Element 7HV combination unit is the perfect addition to smaller boats such as bay boats, flats boats, and more. A bright 7” sunlight viewable display provides you with unprecedented sonar and mapping views right at your fingertips. High resolution CHIRP technology sonar works together with DownVision, SideVision, and RealVision 3D sonar offering unsurpassed sonar functionality. Detailed Raymarine Lighthouse North America mapping will also be included with your Element 7HV and will provide you with Coastal and Lake mapping detail for North America.
Built with a quad-core processor, the Element 7HV provides each end user with faster map redraws and sharper 3D sonar imaging. The Lighthouse Sport operating system offers a simplified user interface, an oversized waypoint key to mark your favorite fishing spots, and more. Packaged with your 7HV is Lighthouse NC2 Mapping which includes Lake and Coastal mapping for the entire U.S, the British Columbia Coast, The Great Lakes (US and Canada), Alaska, Hawaii and the Bahamas. The Navigational charts include color-shaded bathymetric charts, depth contours, buoys, hazards and tidal stations. You will also be able to access a wealth of fishing information like Fishing HotSpots with GPS coordinates (Verified info by local experts with fishing tips), submerged structure, bottom composition and descriptions. Also for the cruisers and sailors, LNC2 has preloaded marina, boat ramp, access points, fuel docks, parking lots, restrooms, campgrounds and more. The element is also fully compatible with C-Map 4D and Navionics Platinum Plus. If you want to increase the detail where you fish, the Element series units uses their RealBathy technology to draw more detailed charts, real-time 1’ contours and depth colorization. By using the sonar readings from your fishfinder you can get a much more detailed and “real” view of the bottom. The element is also fully compatible with Lighthouse Charting, C-Map 4D and Navionics Platinum Plus.

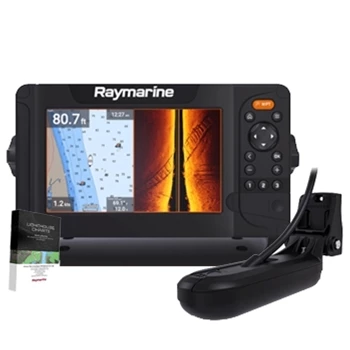

Included with your Element 7HV is a HV100 transom mount transducer combining HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar for the best underwater images. HyperVision 3D sonar and CHIRP technology work together with high frequencies to bring a new level of sonar technology to your boat. A 1.2 megahertz HyperVision mode offers higher resolution imaging up to 100’ (30 meters) for better fish targeting and high-speed bottom tracking. The HV100 has more shallow set 1.2MHz ceramics allowing for superior performance in shallow waters! Easily switch to a 350kHz CHIRP sonar for longer range and higher resolution imaging up to 600’ (180 meters) below the boat. RealVision 3D sonar offers a better depiction of ledges, channel beds, and any contour changes that may affect the type of fishing you are doing.
8gb of internal memory allow each user to store 10,000 waypoints, 150 routes, and 15 tracks, all which can be expanded with an SD card up to 32gb’s. NMEA 2000 connectivity is just another added bonus you will get with your Raymarine 7HV which will allow for simplified networking to your VHF radio, engines, heading sensor integration, and more. For a great addition to your vessel, purchase the Raymarine Element 7HV.
Raymarine periodically releases software updates in an ongoing effort to provide support for new devices and improve performance on existing electronics. Raymarine's newest software release, Lighthouse Sport v3.9.98 allows users to connect 2 Element displays via SeaTalkng for waypoint sharing (will not support route sharing or moving waypoints between groups). Autopilot support is another feature provided with the v3.9.98 software release. Elements can now output navigation data to a connected autopilot via Seatalkng allowing users to track to a waypoint or route (does not allow for autopilot control. A control head is required). The latest software update also allows Element units to connect to the Wireless Quantum Radar via Wi-Fi (Elements cannot support MARPA). Software updates are free and accessible through Raymarine’s website or direct to your device via WiFi. Software update may be required.
- Raymarine Element 7HV GPS/Fishfinder
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Lighthouse North America Mapping
- HV-100 Transucer with 6m cable
- Transom bracket with mounting hardware
- P-clips with mounting hardware (x5)
- Escutcheon plate with mounting hardware
- Up To a 3-Year Manufacturer Warranty
- 7” Rugged GPS with HyperVision Sonar
- NMEA2000 Compatible (DeviceNet Micro-C Connection)
- HyperVision 1.2MHz Sonar with CHIRP, DownVision, SideVision and RealVision
- 10,000 Waypoints, 150 Routes, 16 Tracks
- Detailed Lighthouse North America Maps for Coastal and Lakes throughout North America
- Size: 9.5"W x 5.3 "H x 2.4“D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 50 | 10,000 points 15 saved tracks | GNSS Receiver: GPS/GLONASSr | Color 7" Diag. 800 x 480 | Click Here |
