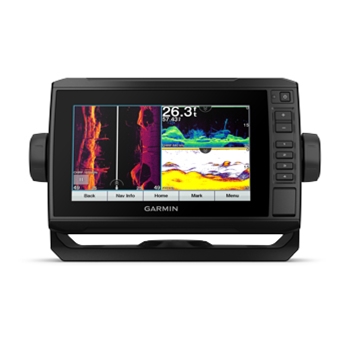

7” Chartplotter with Coastal Maps, enhanced sonar and Color Palettes!
The Garmin ECHOMAP UHD 74sv offers a bright 7” key assisted touchscreen display with built-in detailed BlueChart G3 mapping for offshore use throughout the US. Integrated Garmin and Navionics content provide detailed coverage for Coastal US including both East and West coasts, the Gulf Of Mexico, and the US and Canadian sides of the Great Lakes. These charts will display navigational aids, spot soundings, tides, and currents which can be further enhanced with Garmin’s G3 Vision charts or LakeVu Ultra charts which add auto guidance, depth range shading, shallow water shading, and 3D views.
Garmin offers several Premium chart options for this Garmin display including Garmin Navionics Vision+ charts. Garmin Navionics Vision+ charts include both coastal and inland coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase. Other chart options for this unit include Garmin BlueChart G3 Vision and Garmin LakeVu Ultra charts. All premium chart options are available in the region of your choice and sold separately.
High contrast Vivid Scanning Sonar Color Palettes, new to the UHD line, allow anglers to better see fish holding structures, distinguish drop offs, and more. Experience remarkably clearer target separation and definition at all frequency ranges that the UHD 74sv supports. Three frequency ranges from 455 kHz, 800kHz, and 1000 kHz at 500 watts deliver peak performance in fresh and saltwater. The Garmin GT56UHD transducer provides up to 20% greater range while at 1000kHz offering detailed views up to 500ft on either side of the boat and up to 400 ft. below the boat with ClearVu imaging. Traditional CHIRP high-wide frequencies provide superior detail up to 800ft in freshwater for the ultimate fishfinding experience on the lake. Force trolling motor compatible, the UHD 74sv will pair flawlessly with this trolling motor option to route to waypoints, follow tracks, and more with ease.

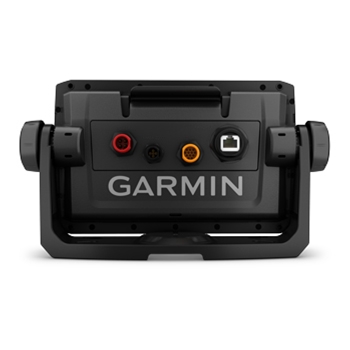

The ECHOMAP UHD 74sv offers a wide variety of networking options such as WiFi, NMEA 2000, NMEA 0183, and ethernet connections to connect to additional displays, tablets, AIS devices, VHF radios, autopilots, and more. The built-in WiFi connects wirelessly with the Garmin Active Captain App that can be downloaded to your smart phone or tablet allowing each user to update and or purchase/download new charts with ease. Via a single ethernet cable, you can share sonar and user data between two ECHOMAP UHD or ECHOMAP Ultra unit 7x and 9x models only). Full NMEA 2000 connectivity allows your ECHOMAP UHD to share engine data, Fusion Link audio, and autopilot information.
*All echomap UHD units include coverage of the Great Lakes. ECHOMAP UHD units with preloaded LakeVu Maps (63,73,93) include coverage of the Great Lakes, US Side Only. ECHOMAP UHD Units with preloaded Bluechart G3 (64,74,94) include coverage of both the US and Canadian side of the Great Lakes.
- Garmin ECHOMAP 74sv with Coastal Maps
- GT56UHD-TM Transducer (25' Cable)with Transom and Trolling Motor Mounts
- Power/Data Cable
- Tilt/Swivel Mount with Quick-Release Cradle
- Flush Mount
- Protective Cover
- Documentation
- Two Year Warranty
- UHD Scanning Sonar with 20% greater range at 1000kHz
- Vivid Colors – Easily Distinguish between targets and structure
- Transom and Trolling Motor Mount Options
- 7” Display with preloaded Coastal Maps
- WiFi Pairing with ActiveCaptain App
- Size: 9.8"W x 5.5"H x 2"D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 100 | 50,000 points 50 saved tracks | 5Hz GPS receiver | Color 7" Diag. 400 x 800 | Click Here |
