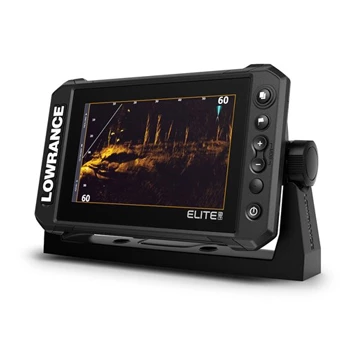

7-Inch Multifunction Display with Active Imagine 3-in-1 Sonar!
The Lowrance Elite FS 7 with Active Imaging 3-in-1 Transducer offers anglers with full access to the new line-up of Lowrance fishfinding features such as ActiveTarget Live Sonar, Active Imaging, FishReveal, and preloaded C-MAP Contour + charts at a price that won’t break the bank. ActiveTarget sonar sold separately. A bright 7” multi-touch display with a built-in 10Hz high speed GPS will update your location more efficiently allowing you to navigate with ease.
Preloaded C-MAP Contour+ mapping covers provides high resolution detail to help you navigate to fish holding structure and show detail for ledges, drop offs and ditches. The Contour+ Mapping covers over 15,000 US lakes and over 9,400 Canadian lakes with coastal data included for both countries. High-resolution 1ft contours make this a great addition to any boat. The Lowrance FS 7 also offers C-MAP Genesis Live which gives each angler the opportunity to create or modify favorite fishing hotspots in real time directly on the Elite display. Incorporated digital depths and ½ ft contours offer detailed views of areas fish like to populate.
New to the Elite FS 7 line is the ability to network displays via ethernet and utilize radar functionalities. Gain full control through the touchscreen of your FS 7 of Power Pole Anchors, GHOST Trolling Motors, and Radar. NMEA 2000 connectivity can also allow anglers to add fuel sensors, VHF radios, and more to add numerical data from these items right on the display of your Elite FS 7. Weather is a crucial factor when it comes to fishing. Add the compatible Lowrance WM-4 Sirius receiver to your Elite FS 7 for real time weather information keeping you connected to storm warnings, weather radar, lightning strikes and more.
Predefined sonar settings are available for specific fishing conditions such as Shallow, General, Fresh, Deep, Slow/Fast Troll for example. For anglers fishing in water less than 60ft., you can set the shallow water fishing mode for flawless views of the bottom and fish moving throughout the water column. The included Active Imaging 3-in-1 transom mounted transducer offers up clear photolike unmatched level of bottom detail and fish. CHIRP, SideScan, and DownScan with Fish Reveal technology help you identify fish from structure with more clarity than ever before.
Active Target Sonar compatibility is one of the many impressive sonar functions of the FS series of fishfinders. ActiveTarget offers unmatched clarity and detail from a Live Sonar, removing the guesswork from traditional sonar interpretation. See how and where fish are positioned among the structure and their direction of travel. (ActiveTarget Live Sonar System required and sold separately)
Take advantage of the Lowrance Ghost 360 feature when you add a Ghost Trolling Motor and Active Imaging 3-in-1 Nosecone Transducer (both sold separately). With these additional accessories, you will have the option of Ghost 360 view which will show a high resolution 360-degree view of the bottom making it easier to pinpoint structure and fish targets. This unique view is generated by the automatic rotation of the Ghost Trolling Motor with an Active Imaging 3-in-1 Nosecone transducer. *Software version 22.1 required. Free software update may be required.
Compatibility with the WM-4 SiriusXM Satellite Receiver (sold separately) allows for SiriusXM Fish Mapping, a subscription-based service offered by SiriusXM. Shop the WM-4 Sirius XM receiver here. This service provides locations in the ocean with the highest likelihood of finding fish that anglers are trying to catch, helping you save time and fuel. This service includes all SiriusXM marine weather data, plus eight dedicated features for offshore anglers. Fishing Recommendations, Weed Lines, Sea Surface Height Anomaly, Sea Surface Temperature Contours, Sea Surface Temperature Front Strength, 30m Subsurface Sea Temperatures, Plankton Concentration Contours and Plankton Front Strength are all included. SiriusXM Fish Mapping also provides Fishing Recommendation Areas for 6 fish species - Tuna, Billfish, Swordfish, Kingfish, Wahoo, and Mahi. A software update may be required and can be downloaded at no cost from the manufacturer’s website.
- Elite FS 7 Display
- Elite FS 7 Suncover
- Power Only Cable

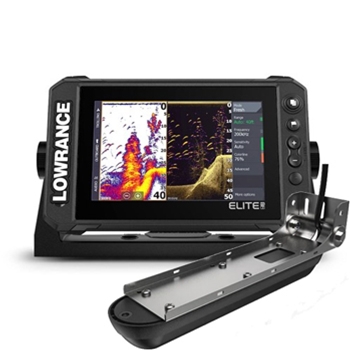

- Active Imagine 3-in-1 Transducer
- Mounting Bracket
- Fuse Set
- 1 Year + 4 additional years of upgrade options, Totaling 5 years
- ActiveTarget Live Sonar Support *Sold Separately
- FishReveal Sonar Technology
- Preloaded C-Map Contour+ Maps
- Integrated Wireless, NMEA 2000 and Ethernet Connection
- Full Touchscreen Control of Ghost Trolling Motor
- Size: 10.45"W x 6.39"H x 4.27“D (Dimensions when mounted on Bracket)
|# Of Waypoints||# Of Routes||Track log||Receiver Type||Display Size||Transducer Pin Configuration||Manuals and Instructions|
|3,000||100||100 Trails with up to 10,000 points per trail||10Hz GPS receiver||Color 7" Diag. 800 x 480||Single 9-Pin Connection||Click Here|
Product Accessories for Lowrance Elite FS 7 with 3-1 Active Imaging Transducer
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Actisense 8-port self-contained NMEA 2000 network makes installing a NMEA 2000 system easier than ever. The SBN-2 is a complete 8-port NMEA network that includes built-in termination resistors. Simply attach the integrated 3-meter power cable to the boats power supply and you are ready to add your devices!
The Actisense W2K-1 is a NMEA 2000 to Wi-Fi Gateway which transfers data from a NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to it via Wi-Fi.
The Navico NMEA 2000 Starter Kit includes all of the parts neccessary to create a NMEA2000 Network on your boat.
The Lowrance ActiveTarget 2 Live Sonar System provides crystal clear live-action sonar imagery with optimized image and stabilization settings. Enhanced beams show more detailed, smoother images. Live views include Forward, Down and Scout modes- allowing for the ultimate in real-time sonar!
Compatible Display Required, Sold Separately.
NEP-2 Network Expansion Port compatible with All Lowrance HDS / HDS Gen2 / HDS Gen2 Touch and Simrad NSS / NSE/ NSO Series.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
The Whoosh Pocket Shine Kit is perfectly safe for cleaning electronics LCD and TV displays. Comes with spray cleaner and cleaning cloth.
The Navico WM-4 provides up to the minute weather forecasts, weather radar, lightning, storm warnings, entertainment and more to your compatible Lowrance or Simrad multi-function display. The WM-4 is compact in design with multiple mounting options (pole or deck mount). SiriusXM subscription required and sold separately.
Order Now Through December 31st, 2023 and Get a $100 Mail-In Rebate From SiriusXM!
If you are mounting a Lowrance HDS or Elite-7 under a hard top or in a pilot house, the Point-1 GPS antenna will help you get a better signal by moving the antenna to an outside location.
Navico's Precision-9 Compass provides heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. NMEA2000 Connectivity.
The HALO20 from Lowrance is a compact dome radar with a 24NM range. Built with pulse compression technology, the HALO20 detects collision hazards and other targets in close range and up to 24 nautical miles away. Includes MARPA target tracking, InstantOn, Lower Power Consumption and more.
Lowrance HDS / Elite and Hook HDI Series Power/Data Cable.
for all HDS / Elite-TI / Elite HDI / Hook HDI series units
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
Connect New and Old networks. Convert NMEA 0183 data into NMEA 2000 data and vice versa allowing them to talk and listen to each other.
Lowrance’s Link-9 provides 25W of output power. This compact fixed mount Marine VHF offers clear communication on the water. Built in GPS Receiver, NMEA0183 and NMEA2000 connections, Built-In AIS Receiver and a simplified front mountable design for easier installation.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
The S3100 sonar module allows for Lowrance Active Imaging HD transducer support for Elite FS and HDS LIVE displays. The S3100 also brings FishReveal SideScan to Elite FS, HDS LIVE and HDS PRO displays. Simply pair the S3100 Sonar Module with the appropriate transducer (required and sold separately) to get crystal clear, high-frequency sonar.
Transducer Required, Sold Separately.
The HALO20+ from Lowrance is a compact dome radar with a 36NM range. Built with pulse compression technology, the HALO20+ detects collision hazards and other targets in close range and up to 36 nautical miles away. Includes MARPA target tracking, InstantOn, Lower Power Consumption and more.
The GHOST Trolling Motor with 47-Inch Shaft from Lowrance is powerful yet quite, allowing anglers to get in close without spooking the fish! A brushless motor and propulsion technology, the GHOST is reliable, offers a longer run time and includes Lowrance Sonar options, GPS anchoring and a 3 Year warranty!
Can Not Ship via Air Service, Must Ship Ground Only!
The Halo 24 from Lowrance pairs with their line of HDS Gen3, Carbon and Live models and offers an industry first 60RPM operation with both long and short range targeting. VelocityTrack Doppler assists in collision avoidance by color coding targets depending on which way they are headed (toward or away from your vessel) .
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
The Actisense 10 Meter NMEA 2000 cable can be used to extend your NMEA 2000 backbone cable. This cable can not be used as a drop cable.
The Actisense NMEA 2000 Field Fit Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Lowrance 4-Way NMEA 2000 Block is the perfect solution when networking and multiple drop cables are in close proximity. No need for multiple T- Connectors, offers a more cost effective and streamlined solution. Part # 000-12612-001 replaces part # 000-10996-001.
The Navico NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone and uses one end of the T-Connector for the drop cable.
