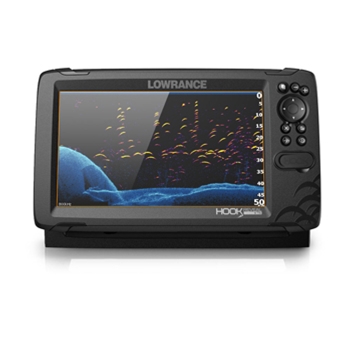

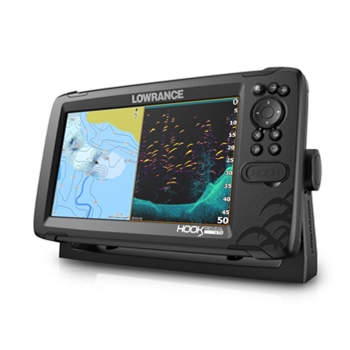

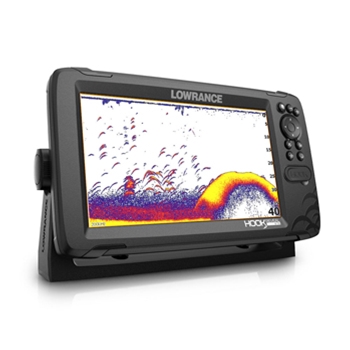

Lowrance HOOK Reveal 9 TripleShot with CMAP Discover Mapping

Free Ground Shipping!

Lowrance HOOK Reveal 9 TripleShot with CMAP Discover Mapping

The Lowrance HOOK Reveal 9 with TripleShot transducer combines FishReveal Technology. High Frequency CHIRP, DownScan and SideScan sonar are all displayed on an expansive 9-Inch SolarMAX display. Includes C-MAP Discover maps featuring U.S. coastal and inland lake coverage.
  • SKUNV15851001
  • MAN#000-15851-001
  • ID#: 6550
(Rating 86)
Our Price:
Expected 6/5/2024
Free Ground Shipping!
Brand New

9” GPS/Fishfinder with highly detailed Lake and Coastal Maps!

Lowrance has made finding and identifying fish easier than ever with the Hook Reveal 9 TripleShot with FishReveal. They have combined traditional sonar and CHIRP sonar to provide high-resolution images of structure and fish all on one screen for unmatched clarity. The 9” Solarmax display provides precise, crisp images, even in bright sunlight or overcast conditions thanks to the 800 x 480 resolution. The built in 1 Hz GPS GLONASS WAAS EGNOS MSAS antenna will lock on to satellites quickly and accurately. Keypad operation gets you accessing exactly what you want in this intuitive combination chartplotter/fishfinder.

The Tripleshot Transom Mount Transducer is the heart of what this Hook 9 Reveal does because it provides High Frequency Sonar shallower waters depths, Sidescan and Downscan imaging all from one transducer. See things like structure and exceptional detail of fish and structure, along with new fish finding color palettes that the Hook Reveal line offers. Have a ton of fishing spots in your list of favorites? You can save up to 3000 Waypoints 100 Routes 100 Trails in the Reveal 9, giving you access to an endless selection of waypoints to go back to.

Detailed Charts are included with each Hook Reveal 9. Offering detailed coverage for both inland and coastal waters throughout North America. The included CMAP Discover charts offer tide & current information, detailed marina port plans, 12 months of free updates, subscription free easy routing, and so much more. High-resolution bathymetric layers help boaters identify shallow areas, drop offs and ledges with 1 ft contour lines. Set safety depths with custom depth shading so you see things your way, making navigation a breeze. Plus, the Hook Reveal series is compatible with additional Mapping options which include Navionics® and more!

Take advantage of the Genesis Live mapping to create your own maps in real time with 1/2’ depth contours whether you’re fishing on a known body of water or one that’s unexplored. The easy to use menu operation gets you tuned into what you want so you can get started fishing sooner instead of going through multiple menu screens- a dedicated keypad makes it fast and simple. Hook Reveal 9 Tripleshot has a built-in auto tuning sonar that instinctually adjusts itself to the current conditions as they change providing the best image, saving you an extra step and focused on fish! If you’ve been looking for a proven performer out there on the open water, your search is over.

The Lowrance HOOK Reveal series is also compatible with Navionics Plus charts. HOOK Reveal 'x' models do not support charts and serve as fishfinders only without any charts or support for charts. Lowrance HOOK Reveal series is NOT compatible with CMAP Reveal charts or Navionics Platinum Plus charts.

Lowrance Hook Reveal 9 Box Contents
Each Lowrance Hook Reveal 9 Comes with:
  • Lowrance Hook Reveal 9
  • Tripleshot Skimmer Transducer
  • Bracket, Knobs and Corner Clips
  • Power Cable, Fuse and Fuse Holder
  • One Year Warranty
Lowrance Hook Reveal 9 Key Features
  • 9” SolarMAX display
  • Enhanced keypad with one touch access
  • Includes Detailed CMAP Discover Maps for US/Canada Lake and Coastal coverage
  • Single microSD Card slot for expanded mapping
  • Genesis Live – Real Time Mapping down to ½’ contours
  • Size:10.92"W x 6.90"H x 4.42“D

Lowrance HOOK Reveal 9 TripleShot with Discover Maps
# Of Waypoints # Of Routes Track log Receiver Type Display Size
3,000 100 100 Trails 1Hz GPS Receiver Color 9" Diag. 800 x 480
Lowrance HOOK Reveal Series Operators Manual Click Here
