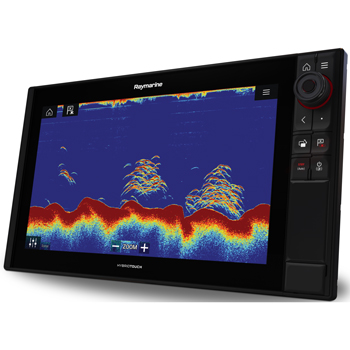

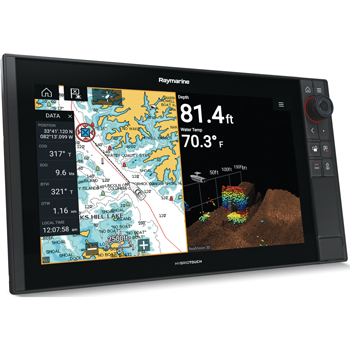

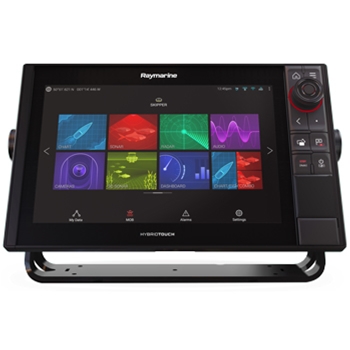

Raymarine Axiom Pro 16 RVX with Navionics Plus Mapping

Raymarine Axiom Pro 16 RVX with Navionics Plus Mapping

The Raymarine Axiom Pro 16 RVX with Navionics Plus Mapping offers a high performance, intuitive display and charting for all of North America. Enjoy quick processing and superb clarity.
  • SKURAE7037300NAG
  • MAN#E70373-00-NAG
  • ID#: 5367
(Rating 87)
Our Price:
$5999.99
Availability:
Usually Ships in 2-3 Days
Shipping:
FREE Ground Shipping!
Condition:
Brand New
free ups ground

Expansive Display with New Sonar Features

Marine GPS Has Echo Sounder Has Touch Screen Waterproof Sunlight Viewable Network Capable

The AXIOM Pro offers a bright, high-resolution 16-inch LCD display with enhanced clarity. A polarized display allows for easy viewing in any environment. Engineered for offshore anglers and even commercial fisherman, the Axiom Pro is durable for any application. Offering the latest Lighthouse 3 OS with HybridTouch control gives anglers the flexibility of multi-touch interaction and rough weather keypad control.

With a quad core processor, the Axiom Pro delivers blazing fast speeds and even the ability to run multiple apps without anyCall for Help with Marine Electronics lag in performance. With 16GB of internal memory you’re able to download 10,000 waypoints and up to 150 routes. Expand the memory of your AxiomPro with 2 SD card slots and even add detailed charting with the addition of optional charting. With Wi-Fi capability, you’re able to use a wide range of Raymarine apps with the Axiom.

The Axiom Pro is packaged with Navionics + Charting for North America. The card includes detailed cruising, sailing and fishing information, port plans, safety depth contours, marine services, tides & currents, and navigation aids. The included Navionics HD Bathometric Sonar Charts show exceptional bottom contour and even include the sonar logs sent in by individual users for a more accurate sonar chart! If the included chart doesn’t provide the detail you are looking for the Axiom Pro 16RVX is also Navionics Platinum Plus compatible for 4x higher resolution satellite photo overlay (the best available), full-view XGA panoramic pictures, improved 3D, and FREE high-definition fishing detail!

With multiple sonar options the axiom will fit any application you throw at it. The Axiom’s 1kW single frequency CHIRP provides top of the line fishfinder abilities. Also, easily identify structure and locate fish with lifelike clarity of RealVision 3D sonar. The Axiom pro provides detailed SideVision & RealVision views up to 300ft., up to 600ft. with DownVision, and up to 900ft. with high frequency CHIRP. Black Box compatibility provides the option for a cp470 and cp570 allowing you a wide spectrum of bands for deep, Mid-range, and shallow fishing.

The Axiom Pro is easily networked with other electronics to create an advanced navigation system that includes multiple Raymarine Axiom displays, Evolution autopilot, FLIR thermal night vision technology, Radar and more. Combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear Cruise™ IR Analytics. This Raymarine specific technology will automatically alert you to obstacles in your path creating a more relaxing and safe boating experience.

With so many options available the Axiom Pro 16 RVX can accommodate any fisherman regardless of your needs!

Raymarine Axiom 16RVX Details
Each Raymarine Axiom Pro 16 RVX comes with: Axiom Pro 16RVX Display, Lighthouse Mapping, Raynet (F) to Raynet (F) 2 Meter Cable, Micro-C DeviceNet to STNG Cable (1M), Suncover, Panel Seal Gasket, Power/Video/NMEA 0183 Cable (1.5M), Mounting Hardware, Quick Start Guide, 3-Year Manufacturer’s Warranty.
Size: 10.2"H x 17.8” W x 2.72” D
Raymarine Axiom Pro 16 RVX Special Features
  • 10Hz GPS/GLONASS Antenna
  • Included Navionics Plus Charting provides detailed information
  • Bluetooth and NMEA 2000
  • Best in Class Screen Brightness
  • Xi5 Trolling Motor Control Via Lowrance SmartSteer
Navionics Charts

Product Accessories for Raymarine Axiom Pro 16 RVX with Navionics Plus Mapping

Raymarine SR200 Sirius/XM Kit with SRA50 Antenna Your Price:$379.95
SKU: RAE70499

Raymarine SR200 Sirius/XM Kit with SRA50 Antenna

View important information like real-time weather radar, NEXRAD storm cell tracking and much more with Raymarine’s SR200! Subscription required, the SR200 includes the SRA50 antenna and can also provide SiruisXM satellite radio to your compatible Raymarine MFD.
Order Now Through December 31st, 2021 and Get a $100 Mail-In Rebate From SiriusXM!

Maretron NMEA 2000 Micro T-Connector Your Price:$23.95
SKU: NM5301

Maretron NMEA 2000 Micro T-Connector

The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.

Maretron NMEA 2000 Male Terminator Your Price:$12.95
SKU: NM5501

Maretron NMEA 2000 Male Terminator

The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2K Starter Kit Your Price:$179.95
SKU: NM2KSTR

Maretron NMEA 2K Starter Kit

Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.

Maretron NMEA 2000 Female Terminator Your Price:$12.95
SKU: NM5801

Maretron NMEA 2000 Female Terminator

A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2000 Field Attachable Male Connector Your Price:$26.95
SKU: NMFACMST

Maretron NMEA 2000 Field Attachable Male Connector

The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Raymarine Quantum Q24C 18" CHIRP Radar Your Price:$1,649.99
SKU: RAE70210

Raymarine Quantum Q24C 18" CHIRP Radar

Raymarine’s Quantum Q24C Radar is an 18” Dome Radar with Range Scales from 1/16th to 24 Nautical Miles. Offering the ability to connect via WiFi for a much easier installation and connection to any of Raymarine's MFDs with Lighthouse II (or later)software, the Q24C weighs 50% less than traditional Magnetron Radars and offers very low power consumption.
Includes 10m Power Cable.

Maretron NMEA 2000 Power-Tee Your Price:$47.95
SKU: NM1801

Maretron NMEA 2000 Power-Tee

A Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network.

Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair 20° Your Price:$1,599.00
SKU: RAXT70319

Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair 20°

The RV220 Bronze Port and Starboard Thru-Hull Transducers from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 15°-25°

Maretron NMEA 2000 Backbone Cable 10 Meter Your Price:$48.95
SKU: NM1708

Maretron NMEA 2000 Backbone Cable 10 Meter

This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.

Whoosh Pocket Screen Cleaner Your Price:$9.95
SKU: WH1FG08ENSP

Whoosh Pocket Screen Cleaner

The Whoosh Pocket Shine Kit is perfectly safe for cleaning electronics LCD and TV displays. Comes with spray cleaner and cleaning cloth.

Raymarine Quantum Q24W 18" Wireless Only CHIRP Radar Your Price:$1,499.99
SKU: RAE70344

Raymarine Quantum Q24W 18" Wireless Only CHIRP Radar

Raymarine’s Quantum Q24W Radar is a Wi-Fi Only, 18” Dome Radar with Range Scales from 1/16th to 24 Nautical Miles. Compatible with any of Raymarines MFD’s with Lighthouse II software, the Q24W weighs 50% less than traditional Magnetron Radars and offers very low power consumption.

Raymarine RV-300 RealVision 3D Plastic Thru-Hull Transducer 0° Your Price:$769.95
SKU: RAXA80470

Raymarine RV-300 RealVision 3D Plastic Thru-Hull Transducer 0°

The RV300 Plastic Thru-Hull Transducer from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a flat bottom / deadrise of 0-5- degrees.

Raymarine CPT-S Transom Mount Transducer Your Price:$58.95
SKU: RAXE70342

Raymarine CPT-S Transom Mount Transducer

Raymarine’s Transom Mount Conical High Frequency CHIRP Transducer is compatible with Raymarine’s CP100 sonar module and embedded CHIRP Multi-Function Displays. Benefit from CHIRP sonar at a low price.

Raymarine CP470 CHIRP Sonar Module Your Price:$1,049.00
SKU: RAE70298

Raymarine CP470 CHIRP Sonar Module

Raymarine’s CP470 is a high performance CHIRP Sonar providing best in class target separation and high resolution CHIRP images. Reaching Depths of up to 10,000ft (dependent on transducer selected) the CP470 is a top choice for offshore fisherman. Compatible with a, c, e, eS and gS Series.

Raymarine CP570 Professional CHIRP Sonar Module Your Price:$1,719.00
SKU: RAE70258

Raymarine CP570 Professional CHIRP Sonar Module

Raymarine’s CP570 CHIRP Sonar Module is designed with the Professional or Tournament Fisherman in mind. Compatible with the a/c/e/eS/gS Series of MFD’s the CP570 Wide Spectrum CHIRP Sonar is designed for offshore and rough waters and offers a maximum of 4kW output power using 2 independent CHIRP channels to target fish, identify bait and reach sea floor down to 10,000 feet.

Maretron NMEA 2000 Micro Inline Terminator Your Price:$21.95
SKU: NMITCMCF

Maretron NMEA 2000 Micro Inline Terminator

The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.

Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair 12° Your Price:$1,599.00
SKU: RAXT70318

Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair 12°

The RV212 Bronze Port and Starboard Thru-Hull Transducers from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 5°-15°

Raymarine RV-312 RealVision 3D Plastic Thru-Hull Transducer Pair 12° Your Price:$1,369.00
SKU: RAXT70320

Raymarine RV-312 RealVision 3D Plastic Thru-Hull Transducer Pair 12°

The RV312 Plastic Thru-Hull Transducer from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 5°-15°

Raymarine RV-320 RealVision 3D Plastic Thru-Hull Transducer Pair 20° Your Price:$1,369.00
SKU: RAXT70321

Raymarine RV-320 RealVision 3D Plastic Thru-Hull Transducer Pair 20°

The RV320 Plastic Thru-Hull Transducer from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 15°-25°
