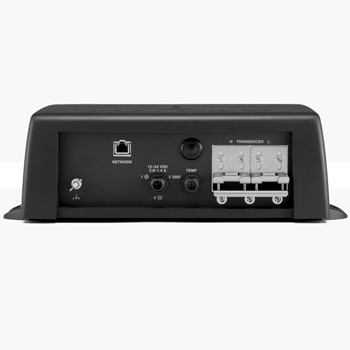

Furuno DFF3 Digital Network Sounder Module

Furuno DFF3 Digital Network Sounder Module

The Furuno DFF3 Network Sounder Module provides 1kw, 2kw or 3kw of power into a black box that can be easily added into your Furuno network. Adjustable frequencies from 28khz to 200khz so you can fine tune to the depth and fish you are targeting.
  • SKUFUDFF3
  • MAN#DFF3
  • ID#: 3096
(Rating 86)
Our Price:
$2195.00
Availability:
Usually Ships in 2-3 Days
Shipping:
FREE 2 Day Air!
Condition:
Brand New
free premier shipping

Network Sounder with 3KW of Power Output

The Furuno DFF3 is built for the serious offshore fisherman or for someone looking for structures such as wrecks. When you have your course plotted with any TZTouch2, NavNet1, NavNetvx2, or NavNet3D system, the DFF3 will provide you detailed echoes from bottom structures as you travel at depths up to 10,000 feet. Select the proper power output whether it be 1kW, 2kW, or 3kw and select the best operating frequency of 28kHz to 200kHz and your ready to go. Offering different frequencies and power outputs allows you to select your best set up for your fishing or cruising.

Furuno is continually improving their devices to support new features through software updates. Update your DFF1UHD to the latest software version through a free download from Furuno's website and take advantage of Post Processing Gain Control. When used in conjunction with a TZTouch2 MFD, Post Processing Gain Control will allow you to adjust the gain for previously received echo targets. This allows users to instantly see how gain adjustments will impact target returns already visible on screen.

Connecting the DFF3 to a TZTouch or NavNet compatible system is easy to do and doesn’t require any kind of software update to do so. Simple plug & play operation & easy installation makes the DFF3 a top notch add on at an affordable price.


**Transducer Required and Sold Seperately.

Furuno DFF3 Box Contents
Each Furuno DFF3 Comes with:
  • Furuno DFF3
  • Fuse FGBO 5A
  • M5 x 20 Tapping Screw
  • Network Cable 5M
  • Power Cable Assy
  • Operators Manual
  • Two Year Warranty
  • Size: 15"W x 11.8"D x 4.7"H
Furuno DFF3 Key Features
  • 1,2 or 3kW Output Power - Transducer Dependant
  • Two operating Frequencies from 28 to 200kHz
  • View Fish and Bottom Structure up to 10,000'
  • Simple PLug and Play with NavNet VX2, NavNet 3D, TZTouch and TzTouch2
