Garmin GNX Wired Sail Pack 43

Free Ground Shipping!

Garmin GNX Wired Sail Pack 43

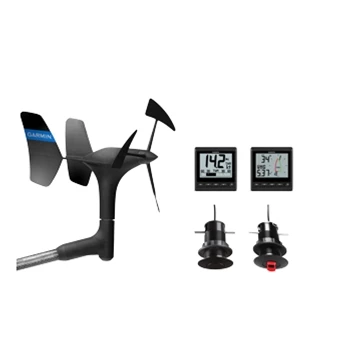

The Garmin GNX Wired Sail Pack 43 includes the GNX Wind and GNX 20 marine instruments with monochromatic display, gWind Wired transducer plus GDT 43 and GST 43 transducers with 43 mm fittings and adapters for NMEA 2000 network sharing.
  • SKUGA0124860
  • MAN#010-01248-60
  • ID#: 6795
(Rating 86)
Our Price:
$999.95
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New

Wind and Water Information at your fingertips!

The Garmin Wired Sail Pack 43 is the perfect addition to any sailboat providing you with accurate sailing and racing data right at your fingertips. Simplified NMEA 2000 connectivity allows you to seamlessly connect the Sail Pack 43 to your current onboard Garmin electronics suite sharing numeric data with ease. The included GNX 20 and GNX wind instrument displays offer a highly-visible glass bonded monochrome LCD display with black digits on a white or color background making your information easy-to-read in any lighting condition. These large high-contrast digits are scalable up to 36mm for excellent daytime and nighttime readability.

Garmin’s GNX Wind display puts sail boater’s minds at ease with all of the crucial information it provides right at your fingertips. Two data fields simultaneously display digital wind rose and true apparent wind data, steering guidance, boat speed, and more. Low power consumption is crucial for sailboats and the GNX wind display offers 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) use. More than 15 marine parameter configurations for wind, speed, navigation and more can be displayed and changed with ease right through the GNX wind display. This information can also be displayed via ANT technology with the gWind wired transducer to a compatible Garmin Quatix marine smartwatch or through the Garmin Nautix in-view display (both sold separately).

The included gWind transducer is an easy to install mast mounted device with a 3-bladed propeller that provides accurate wind speed and stable wind angles even in lighter wind conditions. These wind signals are sent wirelessly via an ANT connection to the GNX wind instrument display or to a compatible Garmin chartplotter. For your speed, temperature, and depth readings, this Wired Sail Pack provides you with both a GST 43 and GDT transducer setup. These two transducers work simultaneously to ensure accurate speed, temperate, and depth readouts which can be shared via your NMEA 2000 network with the addition of a NMEA 2000 adapter to your compatible Garmin chartplotter or instrument display. These transducers also come with 43mm fittings so you don’t have to drill new holes for mounting and can even be retrofitted for existing Nexus or Silva TH43 transducers.

Garmin GNX Wired Sail Pack 43 Box Contents

Each Comes with:
  • gWind Wired transducer
  • GNX™ 20
  • GNX Wind marine instrument
  • GDT™ 43 with NMEA 2000® adapter
  • GST™ 43 with GST 10
  • GND 10
  • NMEA 2000 drop cable (2 meters)
  • NMEA 2000 T-connector
  • Nexus female field installable connector
  • Mast bracket
  • Mounting hardware
  • Documentation
  • Two Year Warranty

Garmin GNX Wired Sail Pack 43 Key Features

  • Highly Visible Monochromatic Displays
  • Accurate water depth, water speed, water temperature data and more
  • Simple NMEA2000 Plug and Play connectivity
  • Retrofit with existing Nexus or SilvaTH43 transducers
  • gWind transducer features twin-fin technology for True Wind Angle (TWA
Garmin GNX 20 Manual Click Here
