Garmin’s “Most Responsive Autopilot System on the Water”

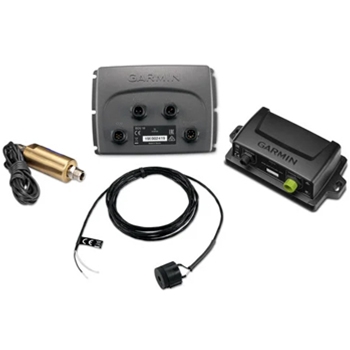

The GHP Reactor 40 Hydraulic Autopilot Corepack from Garmin can be interfaced with any of their hydraulic pumps to provide great autopilot guidance with many features normally found only on larger commercial vessels. The Reactor 40 Hydraulic Corepack incorporates a solid state 9 Axis Attitude Heading Reference System (AHRS) that enables you to mount the Corepack virtually anywhere and in any orientation and still receive optimum performance, minimizing heading error, course deviation, rudder movement, and power consumption, all while providing a more comfortable ride for all onboard. Of course the Reactor 40 Autopilot Corepack includes Garmin’s patented Shadow Drive Technology which allows the Captain to take control of the helm and steer the vessel and then by just holding a steady course it will reengage.
The Reactor40 Autopilot Corepacks all offer sailing features including heading hold, wind hold, tack/jibe, and step turns. Pump required and sold separately. Cubic inch capacity or the HC# off the steering cylinder is required to spec the correct pump. If you are not sure about the size of the hydraulic pump and want to eliminate the guess work, Garmin does offer a smart pump setup with the Smartpump V2 which works with nearly all hydraulically steered vessels. The Reactor 40 Autopilots are fully compatible with a large number of Garmin NMEA 2000 chartplotters to easily share heading data that can be used with BlueChart® g3 Vision® charts (sold separately), to gain optional features like Auto Guidance, which automatically steers GPS paths.
This amazing Autopilot reacts to all sea conditions to hold a steady course even when pitching and rolling in rough seas. With the Reactor Autopilot you can remain confident that you are being steered on your desired course.
*Replaces Garmin 010-00705-15. Does NOT Include Display.
- 9 Axis Attitude Heading Reference System
- Shadow Drive
- Minimizes course deviation and heading error
- Can be mounted virtually anywhere
- Sail boat Features
Product Accessories for Garmin Reactor 40 Hydraulic Corepack without GHC Autopilot Instrument
Si-Tex Hydraulic Autopilot Hose Kit with Fittings, Part Number OC17SUK42.
Control your Garmin Reactor Autopilot right from a remote. This rugged and water resistant remote provides the ultimate onboard control and convenience. Control steering and even use the remote for heading hold and course corrections! (compatible with Compact Reactor, Reactor 40 Steer by Wire and Reactor 40 Hydraulic)
The Garmin Verado Adapter Kit is used for plumbing your Garmin Hydraulic Autopilot to your Mercury Verado Engine Steering System.
The Garmin 2L Pump for the Reactor 40 Autopilot is designed for boats with hydraulic steering between 10 and 24ci. An autopilot pump is required to make a complete Reactor 40 Autopilot system.
The Garmin 1.2L Pump for the Reactor 40 Autopilot is designed as an affordable option for single-cylinder applications with cylinder volumes from 6 to 14 cubic inches. An autopilot pump is required to make a complete Reactor 40 Autopilot system.
The Garmin SeaStar Fittings Kit is used for plumbing your Garmin Hydraulic Autopilot to most SeaStar Steering System.
The Garmin TD 50 provides control at your fingertips even when space is limited! This 5-inch monitor displays engine and system data, allows for the adjustment of lighting, climate controls, entertainment, security sensors, autopilots and more! Easily integrate the TD 50 with your system via NMEA2000, OneHelm systems, EmpirBus and the Garmin Marine Network System.
