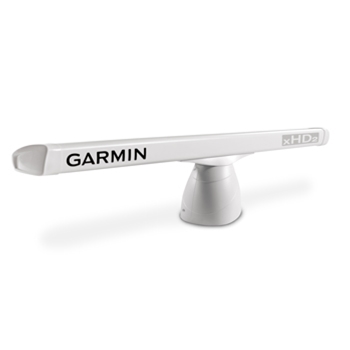

Garmin GMR 2526 xHD2 25kw 6ft Open Array Radar

Free Ground Shipping!

Garmin GMR 2526 xHD2 25kw 6ft Open Array Radar

Garmin’s GMR 2526 xHD2 Radar with 6’ Open Array Antenna and 25kW of power provide an expanded maximum range of 96nm. 8-Bit True Color Display, Pulse Expansion, Auto Bird Gain, Echo Trails and Much More. Perfect for serious anglers and long-distance cruisers.
  • SKUGA0001216
  • MAN#K10-00012-16
  • ID#: 4610
(Rating 87)
Our Price:
Usually Ships in 3-5 Days
Free Ground Shipping!
Brand New

High Definition Radar with expanded 96NM Range


Garmin’s GMR 2526 xHD2 25kw 6’ 96 nm Open Array Radar from Garmin is a top choice radar for serious fishermen and long distance cruisers. The 6’ Open Array antenna with 25kW of power and 1.1° Horizontal Beamwidth provides exceptional target separation and expanded 96 nautical mile range. Network compatible with multiple Garmin MFD’s the 2526 adds True Color, Echo Trails, Pulse Expansion, Dual-Radar support and more to the GPSMAP 7400/7600 and 8000/8500 Series Displays.

Garmin designed the GMR 2526 xHD 2 to be both easy to install and use by offering features that can be used without tuning like an Auto Bird Gain* that can detect birds at the water’s surface where Call for Help with Marine Electronics baitfish may be located. Also the GMR 2526 has a Dynamic Auto Gain that will automatically adjust the gain for harbors, nearshore or offshore waters. With its tight beam width of 1.1° it is highly unlikely that even a small target would escape detection. Of course the GMR 2526 Open Array offers dual range monitoring * of targets both near and far simultaneously on the screen of the plotter. Identifying moving targets is made simpler by the use of Echo Trails* which is a historical trail that is left on the screen to identify these targets and avoid potential collision threats.

The GMR 2526 xHD2 25Kw 6’ Open Array Radar is designed by Garmin for the serious sport fisherman or cruiser with a larger boat who wants the very best!

*Not all Features are compatible with older Garmin Network Systems

Chartplotter Feature Compatibility
  • Fully Compatible with GPSMAP 7400/7600 and 8000/8500 Series.
  • Radar Overlay, True Color, Auto Bird Gain and Echo Trails with GPSMAP 7x1 Series and 8x0/10x0 Series.
  • Radar Overlay, Dual Range and MARPA with GPSMAP 4000/5000 Series
  • Radar Overlay, Dual Range, MARPA and True Color with GPSMAP 6000/7000 Series
Garmin GMR 2526 xHD2 Radar Box Contents
Each Garmin GMR 2526 xHD2 Radar comes with:
  • GMR 2526 xHD2 (Antenna and Pedestal
  • Mounting hardware kit and template
  • Power cable (15 meters)
  • Network cable (15 meters)
  • Cable grommet
  • Voltage converter
  • Documentation
  • Two-Year Warranty
  • Array Size:6' Open Array
Garmin GMR 2526 xHD2 Radar Key Features
  • 25kw 96 nm, 6’ Open Array Radar
  • 1.1° Horizontal Beamwidth
  • Auto Bird Gain
  • Echo Trails
  • Dynamic Auto Gain
