5-Inch Keyed Display with Preloaded Garmin BlueChart G3 Charts with Integrated Navionics Data!

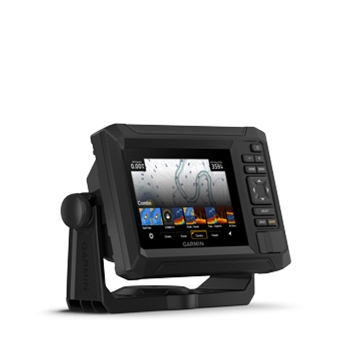

Designed around a rugged, 5" keyed display, Garmin's ECHOMAP UHD2 54cv is packaged with a GT20 transom mount transducer, offers vivid color palettes for enhanced sonar viewing and preloaded Garmin BlueChart G3 Coastal Charts for detailed maps. The 54cv even offers support for Garmin Navionics+ and Garmin Navionics Vision+ enhanced charting (sold separately)!
Garmin offers several Premium chart options for this Garmin display including Garmin Navionics Vision+ charts. Garmin Navionics Vision+ charts include both coastal and inland coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase. Other chart options for this unit include Garmin BlueChart G3 Vision and Garmin LakeVu Ultra charts. All premium chart options are available in the region of your choice and sold separately.

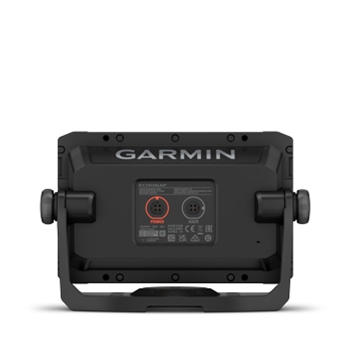

Offering Sonar Support, the 54cv has a single 4-pin Sonar Port. When paired with a compatible transducer the 54cv UHD2 offers clear sonar images providing both traditional and ClearVu scanning* (Photolike images below your vessel). In addition, use your selected transducer and Garmin's QuickDraw Contours Software to create user generated mapping for always on fishing contours and bottom structure of your favorite fishing holes! Transducer required and sold separately. *Sonar features dependent on transducer selected as not all transducers offer support for ClearVu sonar.
Built-in WiFi included in the 5" and 7" UHD2 series provides wireless sharing of sonar (traditional and ClearVu) as well as user data (waypoints and routes) from one compatible UHD2 unit to another. You can even pair with the Garmin Active Captain App for simple software updates and the ability to update or upgrade your charting.
For a simple, affordable, yet rugged and reliable unit look no further than the Garmin ECHOMAP UHD2.
The ECHOMAP UHD2 series is not compatible with the Garmin Panoptix LiveScope System and does not offer any NMEA (0183 or 2000) connectivity.
Garmin ECHOMAP UHD2 54cv Box Contents
- ECHOMAP UHD2
- Power/data cable

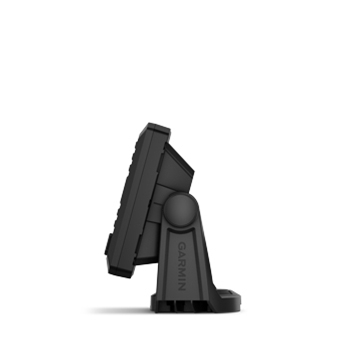

- Tilt Mount
- Flush Mount
- Hardware
- Documentation
- 1- Year Warranty
Garmin ECHOMAP UHD2 54cv Key Features
- Rugged, Industrial Keyed Display
- Compatible with Free Garmin ActiveCaptain App
- Built-In Wi-Fi for Wireless Sharing of Sonar and User Data Between Units
- Built-In Garmin BlueChart G3 Cartography for the United States
- Supports Garmin Navionics Vision+ Mapping (Sold Separately)
- Size: 7.4"W x 4.8"H x 2.4“D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 100 | 50,000 points 50 saved tracks | 5Hz GPS receiver | Color 5" Diag. 800 x 480 | Click Here |
Product Accessories for Garmin ECHOMAP UHD2 54cv

Garmin Protective Cover for 5" Echomap UHD2 Units
Display Cover for ECHOMAP UHD2 52cv, 53cv, 54cv and 55cv GPS/Fishfinders.
Does Not work with Garmin Echomap Plus or UHD units

Garmin 4-Pin Power/Data Cable
Garmin's 4-Pin Power/Data Cable. 6Ft Cable includes NMEA0183 inputs/outputs.

Garmin 8 Pin to 4 Pin Sounder Adapter Cable
Garmin adapter cable connects a Garmin 8-pin transducer to a Garmin 4-pin display including Garmin echo, echoMAP, echoMAP CHIRP, ECHOMAP UHD2, or STRIKER™ series fishfinder.

Garmin Mount for STRIKER 5/7 Series and ECHOMAP UHD2 5"cv/7"cv Series
Garmin Tilt/Swivel Mount for STRIKER 5dv, 5cv, 7dv, STRIKER Plus 5cv,7cv/7sv Fishfinders as well as ECHOMAP UHD2 5-Inch 'cv' and 7-Inch 'cv' GPS/ Fishfinders. Includes knobs.

Garmin Spray Shield for DownVu/SideVu Transducers
Garmin Spray Shield for DownVu/SideVu Transducers

Garmin GT24UHD-TM Ultra High Definition Transducer
Garmin's GT24UHD-TM Transducer pairs with your Garmin GPSMAP 8400/8600xsv series and echoMAP Ultra GPS/Fishfinder to provide exceptional High Definition images of fish and structure below your vessel! The GT24 also provides accurate water temperatures.
