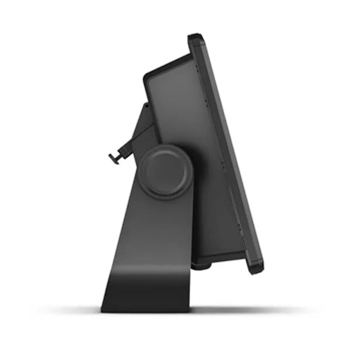

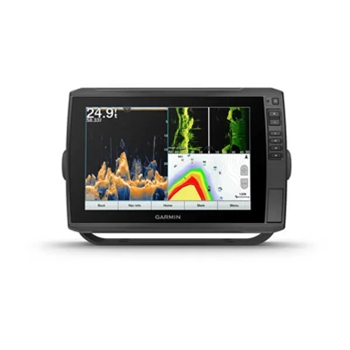

10” Chartplotter/GPS with Built in Sonar Support
Are you in the market for a new GPS/Fishfinder? Look no further! Garmin's ECHOMAP Ultra 102sv is a top choice in combination GPS unit with premier sonar capabilities. A bright, sunlight viewable 10" keyed-assist touchscreen with 10Hz internal GPS quickly and accurately locates your position and will show you moving fluidly onscreen.
Sonar capabilities are not lacking in the 102, with support for CHIRP, CHIRP ClearVu, CHIRP SideVu, UHD Sonar, Panoptix Livescope LVS12 (no black box required) and Panoptix Livescope - the options really are endless (Transducer Required, Sold Separately). A single 12 pin connection on the back of the display makes connection a breeze and since this unit allows you to select the transducer you want, Garmin even includes a 8 to 12 pin adapter making it a breeze to adapt an older 8 pin transducer to this unit (*please note 8 pin transducers will not provide CHIRP ClearVu or SideVu).
Wanting multiple displays, but not needing all the bells and whistles of a fully networkable unit?
The echoMAP Ultra has you covered, with 2 network ports the 102sv will allow you to connect and share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units. Plus with Built-in WIfi you get access to the ActiveCaptain app - access the QuickDraw Community, plan a trip, pre-fish a lake and even get texts and emails on your display (but that’s only if you want to, this can be turned off so you can enjoy a carefree day on the water without being bothered)
The options abound in this unit. With 1 NMEA0183 input and output port, Wireless connectivity, and NMEA2000 you can connect and support heading sensors, autopilot, digital switching, weather, FUSION-Link and more! And when your day of fun on the water is over, the 102sv quickly and easily disconnects from the quick-disconnect mount. Since all the cables are plugged into the mount there’s no need to mess with plugging and unplugging cables. Simply remove the head unit and store it away for safe keeping!
The ECHOMAP Ultra 102sv does NOT include preloaded charts. Detailed mapping can be purchased separately.
Garmin ECHOMAP Ultra 102sv without Transducer Box Contents
Each Garmin ECHOMAP Ultra 102sv without Transducer Comes with:
- ECHOMAP Ultra 102sv
- Power/data cable
- Tilt mount with quick release cradle
- 8-pin transducer to 12-pin sounder adapter cable
- Flush mount
- Protective Cover
- Hardware
- Documentation
- Two Year Warranty
Garmin ECHOMAP Ultra 102sv without Transducer Key Features
- Hybrid Touch 10-Inch Display
- Support for Garmin Panoptix LiveScope Sonar *Sold Separately
- Ultra High Def Scanning Sonar without a Black Box *UHD Transducer required
- Create Personalized Fishing Maps with Quickdraw Contours

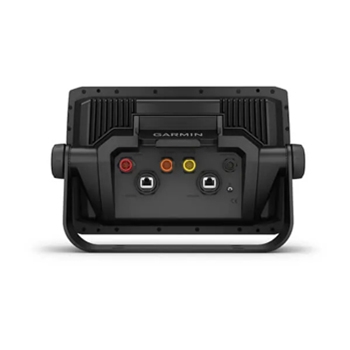

- Dual Ethernet Ports
- Size: 11.6"W x 7.7"H x 3.9“D
Garmin ECHOMAP Ultra 102sv User Manual - Click Here.
Garmin echoMAP Ultra
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size |
| 5,000 | 100 | 50,000 points 50 saved tracks | 10Hz GPS receiver | Color 10" Diag. 1280 x 800 |
