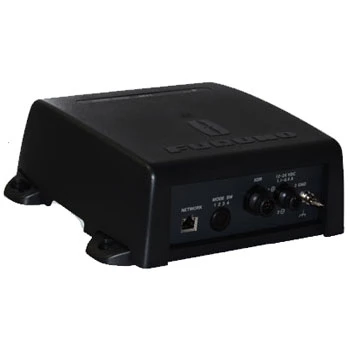

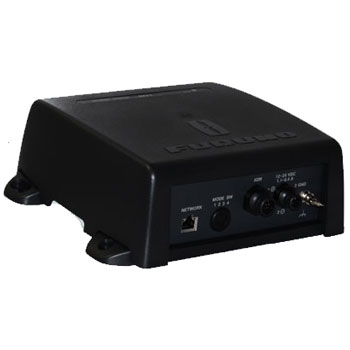

Furuno BBDS1 Network Fishfinder Module

Furuno BBDS1 Network Fishfinder Module

The Furuno BBDS1 Network Fishfinder with Bottom Discrimination revolutionizes what we're seeing below the boat by identifying bottom composition and distinguishing between bait and fish when connected to a compatible NavNet 3D or TZ Touch.
  • SKUFUBBDS1
  • MAN#BBDS1
  • ID#: 3820
(Rating 76)
Our Price:
$795.00
Availability:
In Stock
Shipping:
FREE Ground Shipping!
Condition:
Brand New
free ups ground

Works with Furuno NavNet 3D MFD's and TZTouch Units!

Network Capable Has Echo Sounder

The Furuno BBDS1 network black box fish finder is designed for use with your NavNet 3D or NavNet TZtouch and enhances your fishing experience by helping you locate prime fishing locations. The BBDS1 operates at the most popular frequency ranges of 50/200 khz and gives the power output option of 600w or 1kw. The BBDS1 outperforms other systems by analyzing echo characteristics from the bottom such as particle size and hardness.



The BBDS1 features the FDF (Furuno Digital Filter) capability of the DFF1 as well as an all new bottom discrimination function. With the new bottom discrimination function, data retrieved from the bottom is separated and classified into four categories: mud, sand, gravel, and rock. To utilize these valuable features simply connect the BBDS1 to your NavNet 3D or NavNet TZtouch. Call for Help with Marine Electronics You can even choose from two bottom discrimination display modes; Standard Mode or Probability Mode. The BBDS1’s Standard Mode will show you what materials are the most probable materials on the bottom while the Probability Mode shows you what material has the greatest chance of being on the bottom. This information is displayed in either graphic mode or a 4-color bar on the bottom of the display. With all these great features the Furuno BBDS1 Digital Black Box Fish Finder is a must have for maximizing your fish finding capabilities.

Furuno is continually improving their devices to support new features through software updates. Update your BBDS1 to the latest software version through a free download from Furuno's website and take advantage of Post Processing Gain Control. When used in conjunction with a TZTouch2 MFD, Post Processing Gain Control will allow you to adjust the gain for previously received echo targets. This allows users to instantly see how gain adjustments will impact target returns already visible on screen.

Replaces Furuno DFF1 Sonar Module.



*Only the Transducers below will provide Furuno's Bottom Discrimination Mode with the BBDS1.

Furuno BBDS1 Box Contents
Each Furuno BBDS1 comes with:
  • Furuno BBDS1
  • Operator’s Manual
  • Operator’s Guide
  • (2) Fuse FGBO 3A
  • Power Cable Assembly
  • LAN CBL ASSY 5M RJ35 x RJ45 4P
  • (4) M4 x 20 Self-Tapping Screws
  • Two-Year Warranty
  • Size:12.5” x 12.5” x 9.5"
  • Weight:6.6lbs
Furuno BBDS1 Key Features
  • Connects to NavNet 3D and NavNet TZtouch to help you locate fishing hot spots
  • Furuno Digital Filter (FDF) capability of the DFF1
  • Analyzes echo characteristics from the bottom separating bottom components into categories; Mud, Sand, Gravel, and Rock
  • Graphic Mode or 4-Color Bar Mode to display bottom characteristics
  • Two bottom discrimination display modes to choose from: Standard Mode and Probability Mode
  • 50/200 khz and Power Output options of 600W or 1Kw

Product Accessories for Furuno BBDS1 Network Fishfinder Module

Furuno Transom Mount Transducer with Speed and Temp Our Price:$119.95
SKU: FUX525STPWD

Furuno Transom Mount Transducer with Speed and Temp

The Furuno Transom Mount Dual Frequency Transducer provides accurate depth, speed and temp readings for Furuno fishfinders and sounder modules. 600 Watts and 50/200khz frequencies.(Depth/Speed/Temp).

Furuno 520-5PSD Plastic Thru Hull Transducer Our Price:$139.95
SKU: FUX5205PSD

Furuno 520-5PSD Plastic Thru Hull Transducer

The Furuno Plastic Thru Hull Dual Frequency Transducer provides accurate depth readings for Furuno fishfinders and sounder modules. 50/200khz. Requires In Hull Mount or fabrication of a fairing block.
(Depth Only).

Furuno CA50/200-12M 1kw Bronze ThruHull Transducer Our Price:$809.95
SKU: FUXCA5020012M

Furuno CA50/200-12M 1kw Bronze ThruHull Transducer

The Furuno CA50/200-12M 1kw Bronze ThruHull Transducer is a 1kw transducer that operates at 50/200 khz with a beam width of 28 degrees at 50khz and 8.5 degrees at 200khz. Does not include Fairing Block. Depth and Temp only.

Furuno 526TID-HDD Bronze 1kW Thru-Hull Transducer with Fairing Block Our Price:$919.95
SKU: FUX526THDD

Furuno 526TID-HDD Bronze 1kW Thru-Hull Transducer with Fairing Block

Furuno 526TID-HDD 1kW Bronze Thru-Hull Transducer with High Speed Fairing Block is a must have for any serious recreational or commercial fisherman. Broadband Technology provides excellent fishfinding and detection. 10-Pin connector for Furuno.
(Depth/Temp).

Furuno MB1100 Matching Box with 10pin Connector Our Price:$349.95
SKU: FUXMB1100

Furuno MB1100 Matching Box with 10pin Connector

The Furuno MB1100 Transducer Matching Box with 10pin Connector is used to connect specific transducer with no connector to Furuno 10 pin connector Fishfinders.
