9” Touchscreen GPS with Livescope Plus Sonar System!
Garmin's echoMAP UHD 93sv provides a bright 9" keyed assist touchscreen display, built in Lake Charts, a rugged and reliable housing and an ultra high definition scanning sonar with GT54UHD Transom Mount transducer for excellent charting and fishfinding at an affordable price point!
Built-In LakeVu Maps! With both Garmin and Navionics content you will receive coverage for over 17,000 inland lakes with up to 1 foot contours, providing a clear understanding of the lake floor and provides navigational aids, spot soundings, tides and currents. If you are wanting or needing more information or other coverage areas than the preloaded chart offers - such as auto guidance, 3D views, shallow water shading and more you can expand your mapping options via the single microSD card slot and Garmin's extensive line of LakeVu Ultra, Bluechart G3 and G3 Vision charts available!
With built in UHD scanning sonar and the included GT54UHD Transducer you can see crisp images of structure and fish below and to the left and right of your vessel. The GT54UHD Transducer with depth and temperature readings will provide UHD Frequency of 800kHz for clear images down to 200' deep and UHD SideVu Frequency of 1200kHz reaching 125' left and right for a total of 250' to a max depth of 30'. CHIRP High Wide frequencies of 150-240kHz provide enhanced images with excellent target separation down to 800'. The GT54UHD also includes a SideVu Frequency of 455kHz which will increases the Maximum Range to 500' side to side - Please note all depths listed are maximums and will change based on water clarity and conditions. Plus, with the included transducer, you also get full access to Garmin's QuickDraw Contours software. With QuickDraw Contour mapping software built in and a compatible transducer, you’re instantly able to create personalized fishing maps with 1’ contours as you’re steering the boat across the waters. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will be instantly displayed and the best part is that these are your maps. Store up to 2 million acres of quickdraw contour maps - keep them for yourself or share within the Garmin QuickDraw community. Also compatible with the full line of Panoptix transducers, you can turn your UHD 73sv into an even more powerful sonar with livevu forward and down images.

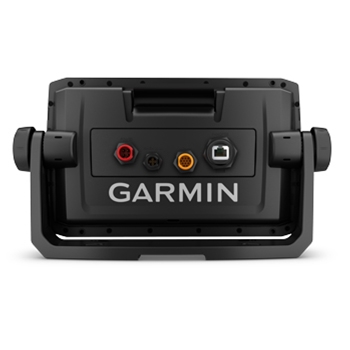

With limited networking options, the 93sv offers WiFi, NMEA2000, NMEA0183 and ethernet networking to connect to additional displays, tablets, AIS, VHF, Autopilots and more. The built in Wi-Fi connects wirelessly with the ActiveCaptain App that can be downloaded to your smart phone or tablet and allows you to update or purchase/download new charts quickly and easily. With Ethernet networking you can now enjoy sharing sonar and user data between two ECHOMAP UHD or ECHOMAP Ultra units (7x and 9x models only) via Ethernet cable. Full NMEA 2000 connectivity allows your ECHOMAP UHD to share information such as engine data, Fusion-Link audio information, autopilot connectivity. The 93sv is also FORCE Trolling motor compatible enabling you to pair your display with the FORCE to route to waypoints, follow tracks and more!
If you are looking for a combination GPS/Fishfinder and dont want to break the bank, the EchoMap UHD from Garmin is a top choice.

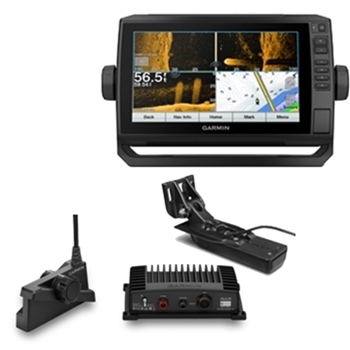

- ECHOMAP UHD 93 with LakeVu G3 Maps
- GT54-UHD Transom Mount Transducer with Depth and Temp Readings and 20’ cable
- Power/Data Cable
- Tilt Mount with Quick Release Cradle
- Flush Mount
- Protective Cover
- GLS 10 Sonar Black Box
- Panoptix LVS34 Transducer with 20' Cable
- Perspective Mount
- Trolling Motor Barrel Mount
- Trolling Motor Shaft Mount
- Power Cable
- 6' Network Cable 2.0
- 1' Adapter Cable
- Two Year Warranty
- Bright, 9” Keyed Assist Touchscreen Display
- Network Sharing with other ECHOMAP Plus, UHD and Ultra Displays
- Includes GT54-UHD Transducer for Ultra-High Definition ClearVu, SideVu and CHIRP
- Pairs with Force Trolling Motor and Panoptix Systems
- Preloaded LakeVu G3 Maps with Navionics detail
- Size: 11.4"W x 6.5"H x 2.4“D
|# Of Waypoints||# Of Routes||Track log||Receiver Type||Display Size|
|5,000||100||50,000 points 50 saved tracks||5Hz GPS receiver||Color 9" Diag. 400 x 800|
