9” Chartplotter with BlueChart G3 Maps, Enhanced UHD Sonar and Vivid Color Palettes!

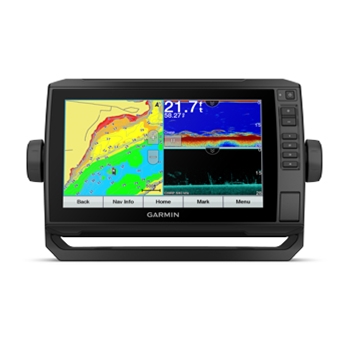

The Garmin ECHOMAP UHD 94sv chartplotter/fishfinder offers a super bright 9" keyed assisted touchscreen display that includes U.S. Lake and Inland waterway charting data from Navionics and Garmin. The UHD 94sv features Ultra High Definition Sonar performance with improved capabilities over previous models thanks to the included GT56 Transom Mount Transducer.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. Ultra High Definition (UHD) ClearVu and SideVu Scanning sonar is built into every EchoMap UHD 94sv. With a UHD compatible transducer you can see ultra-clear images of structure and fish below and to the left and right of your vessel. The included GT56 allows for 20% more coverage on side imaging over previous generation models. With QuickDraw Contour mapping software built in and a compatible transducer, you’re instantly able to create personalized fishing maps with 1’ contours as you’re steering the boat across the waters. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will instantaneously be displayed and the best part is that these maps do not have to be shared with a community, they are yours to keep personal. You’re able to store up to 2 million acres of quickdraw contour maps using this feature.
Garmin and Navionics content have been combined to offer the best charts on the market and you will receive coverage for over 17,000 inland lakes with up to 1 foot contours. This combination provides a clear understanding of the lake floor and included navigational aids, spot soundings, tides and currents assist in proper navigation of unfamiliar waters. If you want or need more information than the preloaded chart offers, upgrade to the Garmin LakeVu G3 Ultra to get great features such as auto guidance, 3D views, shallow water shading and more. Garmin's extensive line of LakeVu Ultra, Bluechart G3 and G3 Vision charts are available as well.

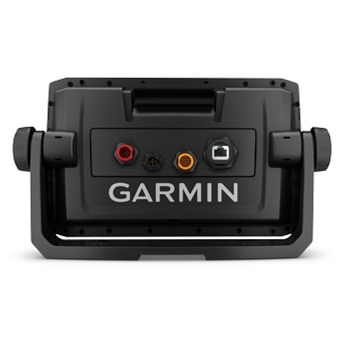

The EchoMap UHD series offers many networking capabilities from WiFi, NMEA2000, NMEA0183 and ethernet networking to connect to additional displays, Panoptix Livescope Plus (included with bundle) all seeing sonar, tablets, AIS, VHF, Autopilots and more. The built in Wi-Fi connects wirelessly with the ActiveCaptain App that can be downloaded to your smart phone or tablet and allows you to update or purchase/download new charts quickly and easily. With a Garmin Marine Network cable you can now enjoy sharing sonar and user data between two ECHOMAP UHD or ECHOMAP Ultra units (7x and 9x models only) via Ethernet cable. Full NMEA 2000 connectivity allows your ECHOMAP UHD to share information such as engine data, Fusion-Link audio information, autopilot connectivity. The 94sv is also FORCE Trolling motor compatible enabling you to pair your display with the FORCE to route to waypoints, follow tracks and more!
If you are looking for a combination GPS/Fishfinder without paying for the extra capabilities that you’re never going to use, the Echomap 94sv UHD may be the perfect choice for you.
*All echomap UHD units include coverage of the Great Lakes. ECHOMAP UHD units with preloaded LakeVu Maps (63,73,93) include coverage of the Great Lakes, US Side Only. ECHOMAP UHD Units with preloaded Bluechart G3 (64,74,94) include coverage of both the US and Canadian side of the Great Lakes.
- Standard ECHOMAP 94sv with GT56 Package:
- Garmin ECHOMAP 94sv with Lake Maps
- GT56UHD-TM Transducer (25' Cable) with Transom and Trolling Motor Mounts
- Power/Data Cable
- Tilt Mount with Quick-Release Cradle
- Flush Mount
- Protective Cover
- Documentation
- Two Year Warranty

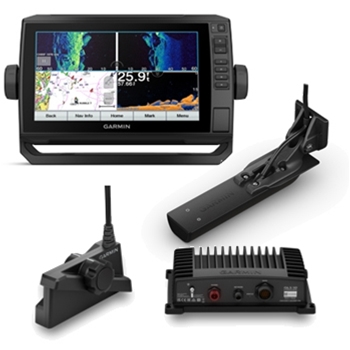

- Standard LiveScope Plus Package:
- Livescope GLS10 Black Box
- Panoptix LVS 34 Transducer
- Perspective Mode Mount
- Trolling Motor Barrel Mount
- Shaft Mount
- Power Cable
- 2 Meter Garmin Marine Network Cable (small connector)
- Network Adapter Cable
- Documentation
- Two Year Warranty
- UHD Scanning Sonar with 20% greater range at 1000kHz
- Vivid Colors – Easily Distinguish between targets and structure
- Transom and Trolling Motor Mount Options
- 9” Display with preloaded Coastal Maps
- WiFi Pairing with ActiveCaptain App
- Size: 11.4"W x 6.5"H x 2.4“D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 100 | 50,000 points 50 saved tracks | 5Hz GPS receiver | Color 9" Diag. 400 x 800 | Click Here |
Product Accessories for Garmin ECHOMAP UHD 94sv with GT56 and LiveScope PLUS Bundle

Garmin 20' Marine Network Cable
Garmin Marine Network Cable (20').

Garmin NMEA 2000 Starter Kit
The Garmin NMEA 2000 Starter Kit comes with all of the parts you need to start a NMEA2000 Marine Network.

Garmin GMS 10 Network Port Expander
Garmin GMS 10 Network Port Expander will add 5 Network ports to your Garmin network.

Garmin 6' Marine Network Cable
Garmin Marine Network Cable (6').

Garmin GPS 24xd NMEA2000 Multi-Band Antenna
Garmin’s GPS24XD NMEA2000 GPS antenna provides multi-band GNSS accuracy to 1M. The magnetic heading sensor provides accuracy to within 3 degrees with enhanced stabilization at slow speeds. Includes under-deck, pole and surface mount options.

Garmin 4-Pin Power/Data Cable for Chartplotters
Garmin 4-Pin Power/Data Cable for Select 7" and 9" echoMAP CHIRP, echoMAP Plus, ECHOMAP UHD, ECHOMAP UHD2 Chartplotter Fishfinders.

Garmin Bail Mount for echoMAP Plus and UHD 93sv/94sv Units
Garmin Bail Mount with Quick Release Bracket for 9" echoMAP PLUS 93sv and 94sv units as well as ECHOMAP UHD 93/94sv.

Garmin NMEA 2000 Backbone/Drop Cable 2 Meter
This cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter

Garmin Protective Cover for 9 Inch echoMAP Plus/UHD Units
Keep your Garmin echoMAP 9" Plus or UHD Display Clean and Protected with this compatible cover.

Garmin 12-pin 10' Transducer with ID Extension Cable
Garmin 10 foot transducer extension cable for GCV10 / 12-Pin DownVu/SideVu Transducers.

Garmin NMEA 2000 Micro T-Connector
The Garmin NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone cable and uses one end of the T-Connector for the drop cable.

Garmin GFS10 Fuel Sensor
The Garmin GFS 10 Fuel Sensor provides fuel flow and fuel level measurement data. You can view this information on your compatible Garmin NMEA2000 compliant chartplotter, GPS/FF combo or GMI 10 display.

Garmin SteadyCast Heading Sensor
Garmin's SteadyCast Heading Sensor offers a simple solution to heading accuracy. Easy to Install with a 10Hz output rate and accuracy to +/- 3°

Garmin NMEA 2000 Multiport T-Connector
Garmin NMEA 2000 Multiport T-Connector.

Garmin NMEA 2000 Female Terminator
The Garmin NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Garmin NMEA 2000 Backbone Cable 6 Meter
This Garmin cable can be used as your NMEA 2000 backbone or drop cable. Length: 6 Meters.

Garmin NMEA 2000 Male Terminator
The Garmin NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Garmin 12-pin 30' Transducer with ID Extension Cable
Garmin 30 foot transducer extension cable for GCV10 / 12-Pin DownVu/SideVu Transducer.

Garmin Spray Shield for DownVu/SideVu Transducers
Garmin Spray Shield for DownVu/SideVu Transducers

Garmin 40' Marine Network Cable
Garmin Marine Network Cable (40').

Garmin Trolling Motor Mount for GT36UHD and GT56UHD
Garmin Trolling Motor Mount for GT36UHD and GT56UHD Transducers. Can be used as a secondary mount or replacement as this is the same trolling motor mount that came with the GT36 and GT56 originally.

Garmin NMEA 2000 Backbone Cable 10 Meter
This Garmin cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.

Garmin NMEA 2000 Network Updater
The Garmin NMEA 2000 network updater provides the convenience of updating Garmin products and NMEA 2000 accessories that do not have an SD card slot.

Garmin NMEA 2000 Power Cable
The Garmin NMEA 2000 Power Cable is used to power your NMEA 2K network through a standard NMEA2000 T-Connector.

Garmin Flush Mt Kit f/ echoMAP Plus/UHD 9xsv
Give your 9" echoMAP Plus or echoMAP UHD unit a sleeker look with the Garmin Flush Mount Kit.

Garmin GTEMP 10-TH Thru-hull Temp Sensor
Garmin's GT10 Thru Hull Temp sensor provides accurate temperature readings from -13°-140°F in your baitwell, livewell or the waters your fishing. Simple Plug and Play integration with your NMEA2000 network.
