Garmin’s “Most Responsive Autopilot System on the Water”
The GHP Reactor 40 Hydraulic Autopilot Corepack from Garmin is compatible with any Garmin hydraulic pump to provide an autopilot experience typically found only on larger commercial vessels. The Reactor 40 Hydraulic Corepack incorporates a solid state 9 Axis Attitude Heading Reference System (AHRS) that enables you to mount the Corepack virtually anywhere and in any orientation and still receive optimum performance, minimizing heading error, course deviation, rudder movement, and power consumption, all while providing a more comfortable ride for all onboard. Of course the Reactor 40 Autopilot Corepack includes Garmin’s patented Shadow Drive Technology which allows the Captain to take control of the helm and steer the vessel and then by just holding a steady course it will reengage.
The Reactor40 Autopilot Corepack offers sailing features including heading hold, wind hold, tack/jibe, and step turns. The Reactor 40 Autopilots are fully compatible with a large number of Garmin chartplotters to easily share heading data that can be used with BlueChart® g3 Vision® charts or Garmin Navionics Vision+ charts (sold separately), to gain optional features like Auto Guidance, which automatically steers GPS paths based on safe navigation and boat specs.
The included 1.2L autopilot pump kit pairs with the Reactor 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. New and improved with ORB hydraulic ports and threaded cable collars for increased durability. The 1.2L pump is appropriate for hydraulically steered vessels from 6-14 cubic inches.
This amazing Autopilot reacts to all sea conditions to hold a steady course even when pitching and rolling in rough seas. With the Reactor Autopilot you can remain confident that you are being steered on your desired course.
*Replaces Garmin 010-00705-15
*Please Note That Additional Hoses and Fittings May Be Required. Suitable for boats with hydraulic steering from 6-14 cubic inches.

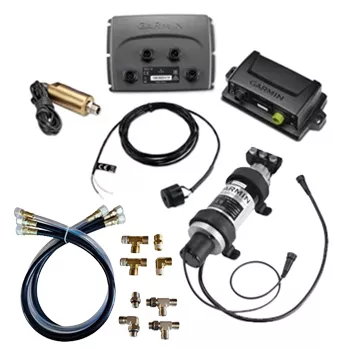

- Reactor 40 CCU (Course Computer Unit)
- Garmin 1.2L Pump: Pump assembly, Installation instructions, Installation mounting hardware, 3 pcs of ORB-5 to 3/8" compression marine tube fitting
- ECU (Electronic Control Unit)
- ECU Power Cable
- Interconnect Cable
- Shadow Drive
- Buzzer
- NMEA 2000 Drop Cables (2 meters)
- NMEA 2000 Power Cable
- NMEA 2000 T-connectors
- Male and Female Terminators
- Si-Tex Hydraulic Kit for Autopilots
- Documentation
- Features 9-Axis AHRS Compass
- Reacts to Sea Conditions
- Fast and Easy Calibration
- Responsive Autopilot!
- Size: Without Suncover-4.13"W x 4.51"H x 2.01"D, With Suncover- 4.45”W X 5.67”H X 2.20”D
