Lowrance HDS-9 LIVE with Transducer

Free Ground Shipping!

Lowrance HDS-9 LIVE with Transducer

The Lowrance HDS-9 LIVE with 3-in-1 transducer provides Active Imaging advanced sonar providing CHIRP, SideScan and DownScan sonar all viewable on the 9" high definition SolarMax display.
Order an HDS LIVE or Pro Display and Additional Qualifying Lowrance Components Now Through April 30th, 2023 and Receive Up To $800 in Savings via Rebate from Lowrance! Click here for Full Lowrance Ultimate Fishing System Upgrade Event Details.
  • SKUNV14422001
  • MAN#000-14422-001
  • ID#: 5761
(Rating 95)
Our Price:
Was
$1,499.00
$1,079.00
On Sale
Availability:
Backorder,
Expected 4/14/2023
Shipping:
Free Ground Shipping!
Condition:
Brand New

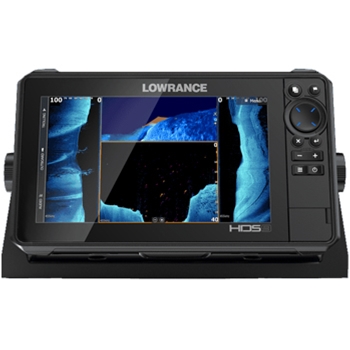

9" SolarMax Display with Active Imaging!

Long recognized in the fishing community for providing unsurpassed chart plotting and sonar performance, Lowrance and the HDS 9 LIVE is no exception! A bright 9" sunlight viewable, 1280 x 720 pixel display with dual core processor, and both touch and keypad control offers a simple user interface with intuitive operation and provides crisp, clear detail when viewing charts and fish detail.

Call for Help with Marine Electronics

CHIRP sonar with active imaging provides multiple sonar features. Compatible with LiveSight Real-Time Sonar, the HDS9 will amaze even the most experienced mariners. With the included all-in-one active imaging transom mount transducer, CHIRP/SideVision and DownVision are all included. You will be amazed at the detail you see below your boat and to the left and right of your vessel. Pinpoint fish holding areas, view in crisp clear detail and with active imaging you will receive superior clarity at the best possible resolution at a longer range than any other structure imaging technology on the market. New to the live series, is FishReveal - By combing CHIRP with DownScan Lowrance has removed the need to display CHIRP sonar and DownScan independently, they now work together to make viewing fish via DownScan imaging easier then ever before. Coming soon (early 2019) the HDS Live will be compatible with LiveSight - showing fish in real time as they swim below, watch how they react to your lure, how they relate to structure and more. Fishing couldn't get much easier then this!

The HDS Live includes preloaded C-MAP DISCOVER OnBoard charts for the US covering inland and coastal areas. CMAP DISCOVER OnBoard charts include bathymetric 1-foot contours on over 19,000 U.S. lakes and 9,400+ lakes in Canada. Find more success on the water with full featured vector charts, integrated Genesis Social Map data, Custom Depth Shading, unique fishing POIs, and high-resolution detail. View the list of lakes included in DISCOVER OnBoard Charts here.

Navionics Compatible CMAP Compatible

Want to take a day off and enjoy the open water? Are you afraid you may miss an important call or text? With Smartphone notifications you never have to worry about that. View calls and texts right on your display via a pop up notification. Don't want to be bothered? No worries, simply turn off phone notifications in the settings and you are free to fish and enjoy the day without any interruptions.

Active Target Sonar compatibility is one of the many impressive sonar functions of the HDS Live series of fishfinders. ActiveTarget offers unmatched clarity and detail from a Live Sonar, removing the guesswork from traditional sonar interpretation. See how and where fish are positioned among the structure and their direction of travel. (ActiveTarget Live Sonar System required and sold separately)

Take advantage of the Lowrance Ghost 360 feature when you add a Ghost Trolling Motor and Active Imaging 3-in-1 Nosecone Transducer (both sold separately). With these additional accessories, you will have the option of Ghost 360 view which will show a high resolution 360-degree view of the bottom making it easier to pinpoint structure and fish targets. This unique view is generated by the automatic rotation of the Ghost Trolling Motor with an Active Imaging 3-in-1 Nosecone transducer. *Software version 22.1 required. Free software update may be required.

Compatibility with the WM-4 SiriusXM Satellite Receiver (sold separately) allows for SiriusXM Fish Mapping, a subscription-based service offered by SiriusXM. Shop the WM-4 Sirius XM receiver here. This service provides locations in the ocean with the highest likelihood of finding fish that anglers are trying to catch, helping you save time and fuel. This service includes all SiriusXM marine weather data, plus eight dedicated features for offshore anglers. Fishing Recommendations, Weed Lines, Sea Surface Height Anomaly, Sea Surface Temperature Contours, Sea Surface Temperature Front Strength, 30m Subsurface Sea Temperatures, Plankton Concentration Contours and Plankton Front Strength are all included. SiriusXM Fish Mapping also provides Fishing Recommendation Areas for 6 fish species - Tuna, Billfish, Swordfish, Kingfish, Wahoo, and Mahi. A software update may be required and can be downloaded at no cost from the manufacturer’s website.

Fully compatible with 3G/4G broadband radar, Halo 20, 20+ and 24, and more, the HDS LIVE 9 is a powerhouse of functionality and advanced features. Since the LIVE 9 is NMEA 2000 compatible, it’s very simple to view engine data as well as other numerical data from other compliant devices you have on your NMEA network. Customize your MFD to suit your needs. You can even split the screen 6 ways at once, making it easier than ever for anglers to keep everything that’s important right at their fingertips. For the ultimate fishfinding MFD, the Lowrance HDS LIVE 9 is the superior choice.

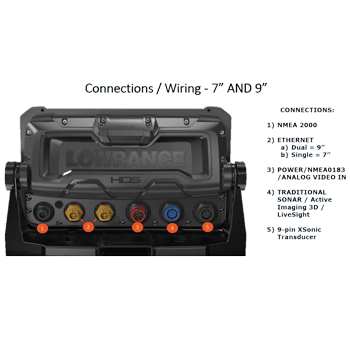

A 10Hz Update rate refreshes 10x per second for a flawless on screen movement. With a single Ethernet port,(Add an NEP-2 expansion port for additional Ethernet connections) NMEA2000 connectivity and the ability to accept 2 micro SD cards up to 32GB's each your networking and storage options are endless. Internal memory will store up to 3,000 waypoints, 100 routes, 100 trails with up to 10,000 points per trail. Compatible with Lowrance's Link app - you can pair your smartphone or tablet with the app for remote control access of your MFD. Work with charts, sonar, radar, entertainment and more. Mirror your display, create routes, and mark waypoints and wirelessly back up. All this and more is available via the free Navico Link App. The HDS 9 LIVE offers all of this and MORE!

Waterproof to IPX6 and IPX7 standards means that the HDS Live can withstand the everyday conditions of life on the water. Whether your tournament fishing or just enjoying a day out with your buddies, make sure the HDS 9 LIVE is along for the ride!

Lowrance HDS-9 LIVE with Transducer Box Contents
Each Lowrance HDS-9 LIVE with Transducer Comes with:
  • HDS-9 LIVE
  • Active Imaging 3-in-1 Transducer
  • Power/NMEA 0183 Cable
  • Bracket and Knobs
  • Suncover
  • Bezel Kit
  • Two Year Warranty
Lowrance HDS-9 LIVE with Transducer Key Features
  • Active Imaging 3-in-1 Sonar
  • Smartphone Notifications
  • Preloaded CMAP DISCOVER OnBoard Charting
  • Dual 9-Pin XSonic Sonar Ports
  • NMEA 2000 Engine Support
  • Wireless and Bluetooth Connectivity

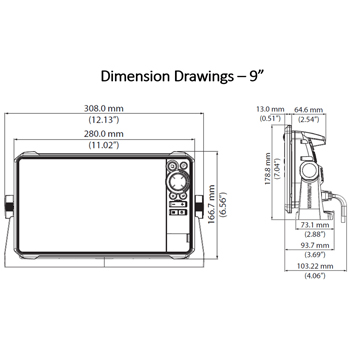

  • Size: 11.02"W x 6.56"H x 3.69“D (without mount)
