Send and Receive Important Vessel Information and enhance Situational Awareness

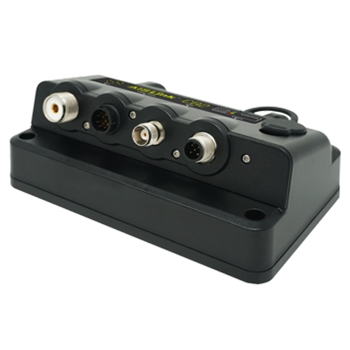

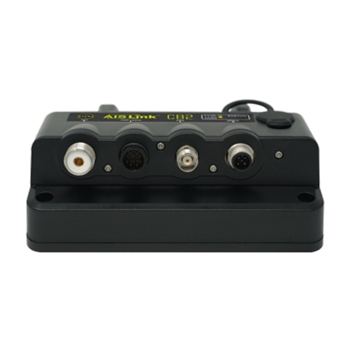

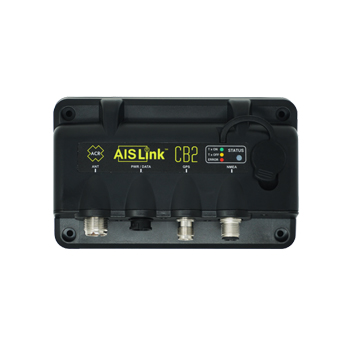

The ACR 2676 Class B AIS Transponder is a must have for any vessel and offers boat owners with an added peace of mind every time their boat leaves the dock. This CB2 model offers faster refresh rates with transmissions at every 5 seconds over leading models that were at every 30 seconds, and also transmits at 5 watts of power versus older AIS models that only transmitted at 2 watts, so now your boat can broadcast to a larger area with improved visibility. This faster reporting feature has reserved time slots for each transmission to ensure your vessels broadcasts don’t get blocked in higher traffic areas and where you need to be seen most.
With the utilization of 99 acquisition channels and 33 tracking channels, an internal multi-GPS receiver will continuously transmit your vessels information including position, course, heading, speed, and more ensuring your location is broadcasted with the utmost accuracy at all times. The AISLink CB2 will additionally transmit static information which will also include MMSI#, call sign, vessel name/type and more. All of these features convey a more real-time picture of your vessels position and enables each of your transmissions to reach further than ever before.
Within minutes of installation on your vessel, you can start the transmission of your AIS data messages and enjoy all the aspects of your AISLink CB2 transponder. Knowing your vessel can be seen night or day and in any weather conditions makes each time out on the water a more enjoyable one. Simplified networking capabilities between the CB2 and other onboard components can be completed through WiFi, USB, NMEA 0183 or NMEA 2000 connectivity, making data sharing easier than ever.
* Before we can program your AIS we need a few pieces of information and all AIS units require programming before shipping. Please fill out the form below and fax (910-575-9543) or email (firstname.lastname@example.org) it back to us.
Click here to download a copy of the AIS programming form.
You will also need an MMSI number to complete the above form, if you dont already have one, you can get that here.
- ACR CB2 AIS Transceiver
- Screw Kit
- Power/Data Cable
- USB to MicroUSB Cable
- GPS Antenna and Fixing Kit
- User Manual
- Two Year Warranty
- Waterproof to IPX7
- Low Energy Consumption
- 12 Times the transmission per minute
- Wi-Fi, USB, NMEA 0183 and NMEA 2000 connectivity
- External GPS Antenna Included
- Size: 3.97"W x 6.37"H x 2.28“D
Product Accessories for ACR 2676 AISLink CB2 ClassB AIS with GPS
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
The Shakespeare 5215-AIS Squatty Body is built with extra bandwidth for all popular AIS transceivers. The 3' stainless steel, lightweight design is perfect for masthead mounting.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
