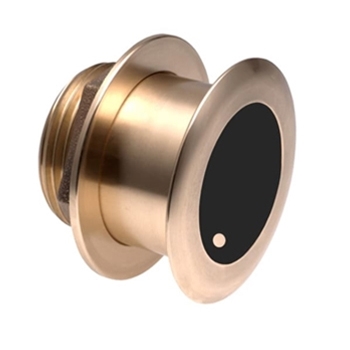

SiTex B175 20 Bronze Low Profile Thru Hull Transducer with Temp

Free Ground Shipping!

SiTex B175 20 Bronze Low Profile Thru Hull Transducer with Temp

SiTex B175 20 Bronze Low Profile Thru Hull Transducer with Temp

Furuno B175 1kW medium frequency CHIRP transducer, Low profile, bronze thru-hull housing for vessels with deadrises of 16-24-degrees. Compatible with SiTex NavPro Fishfinders.
  • SKUSIXB175M20
  • MAN#B175M-20
  • ID#: 7277
(Rating 90)
Our Price:
$1,109.00
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

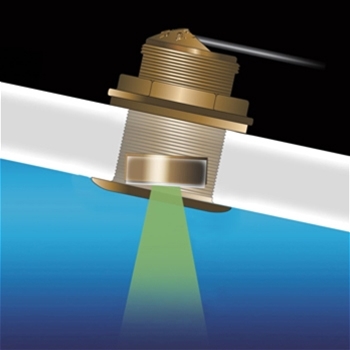

  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 20-Degree, Suitable for 16-24 Degrees
  • Frequency Range: Medium frequency: 85 to 135 kHz, 16-11 Degree Beam Width. 50kHz of Total Bandwidth. Provides CHIRP Sonar.
  • Power Output: 1kW
  • Max Depth: 457m (1500 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 33-feet (10M)
  • Transducer Material: Bronze
  • Connector Style: Compatible with SiTex NavPro Fishfinders
  • Ideal for: Fiberglass or Wood Hulls. Stepped, planning or displacement hulls.
  • Not Recommended for: Steel Hulls
    • B175C Manual Click Here
    B175 Dimensions
