9-Inch Touch Display with DownScan Sonar and Simrad Radar Support

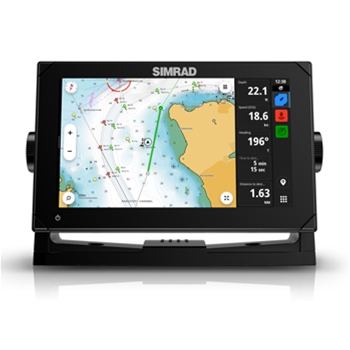

The Simrad NSX 3009 multifunction display has a 9-inch SolarMax IPS touchscreen display for top notch viewability in harsh conditions. The IPS display provides extreme clarity even when viewed with polarized sunglasses. With a display resolution of 1280x720 pixels and a bright white backlight, the 3009 provides crisp, clear images. The internal 10Hz GPS receiver operates off of WASS, MSAS and EGNOS satellites to provide a highly accurate GPS position.
Setup WizardSimrad s Setup Wizard helps you get on the water faster with step-by-step setup instructions. Software updates, on and off water trip planning and easy transfer of data are also available via the Simrad App.
Intuitive and Streamlined Operating SystemOperation of the NSX 3009 display is simple and straightforward. Drag-and-drop screen customizations and a fully editable instruments bar with day and night modes are just a couple of reasons why the NSX is one of the easiest to use units on the market.

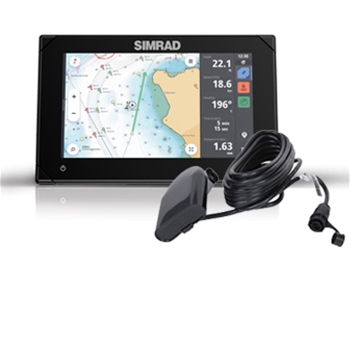

SonarThe NSX 3009 with HDI transducer provides M/H CHIRP and DownScan sonar for a detailed view of fish and structure below your boat and operates on 83/200/455/800 kHz frequencies. The included HDI transducer is designed to be transom mounted.
ChartingCMAP Discover X Maps for North America (part number NA-T-200-D-MS) come in the box and include 12 months of free, easy updates- ensuring you always have the freshest data. Discover X maps are exclusive to the Simrad NSX series and provide Full Vector charts, Hi-Res Bathymetry, Custom Depth Shading, Day and Night modes, Tides and Currents, Detailed Marina Port Plans, Harbor and Approach Detail and subscription-free autorouting.
The Simrad NSX 3009 is also compatible with CMAP Discover REVEAL X charts, sold separately and also exclusive to the Simrad NSX series. This additional chart option provides premium features including a Shaded Relief REVEAL layer and Satellite Imagery. The shaded relief REVEAL layer provides 3D rendered land and underwater elevations including areas of ultra-high resolution. Satellite imagery allows for better situational awareness in unfamiliar areas. Due to the high level of detail, Reveal X maps are sold in smaller coverage areas.

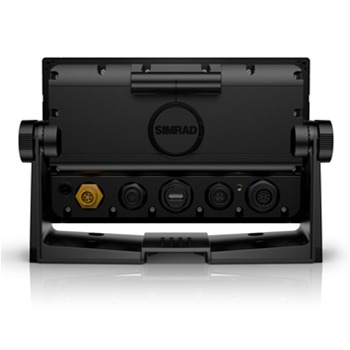

NetworkingThe single network port located on the back of the display allows for connection to Simrad s series of Halo Radars. A single NMEA 2000 port provides connectivity to AIS and NAC-1, NAC-2, NAC-3 and NAC-D autopilots. Currently the NSX series does not support weather accessories. A single USB port enabling modem plug-in for additional device connectivity.
If you re looking for a multifunction GPS with a sleek touch display, Simrad network support and detailed Discover X charts, the Simrad NSX is for you!
Simrad NSX 3009 with HDI Transducer Box Contents
- NSX Display
- Sun Cover
- HDI Transducer with 20ft. Cable
- Connector Caps
- Dash gasket and Fasteners
- Power Cable
- Gimbal Bracket
- Quick start and installation guide
- 2-Year Warranty
Simrad NSX 3009 with HDI Transducer Key Features
- Intuitive TouchScreen
- CMAP Discover Charts
- Easy-to-Use Setup Wizard
- Compatible with Simrad Halo Radars
- HDI DownScan Transducer Included
- Size with bracket: 10.35"W x 6.80"H x 3.17“D
- Size without bracket or sun cover: 9.40"W x 5.85"H x 3.17“D
