9-Inch Touch Display with Active Imaging Sonar and Simrad Radar Support

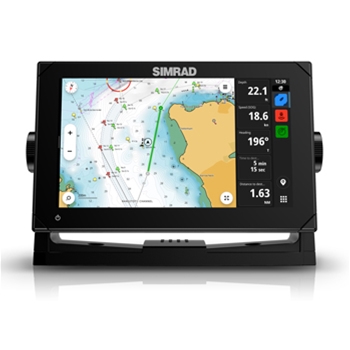

The Simrad NSX 3009 multifunction display has a 9-inch SolarMax IPS touchscreen display for top notch viewability in harsh conditions. The IPS display provides extreme clarity even when viewed with polarized sunglasses. The internal 10Hz GPS receiver operates off of WASS, MSAS and EGNOS satellites to provide a highly accurate GPS position. With a display resolution of 1280x720 pixels and a bright white backlight, the 3009 provides crisp, clear images.
Setup WizardSimrad s Setup Wizard helps you get on the water faster with step-by-step setup instructions. Software updates, on and off water trip planning and easy transfer of data are also available via the Simrad App.
Intuitive and Streamlined Operating SystemOperation of the NSX 3009 display is simple and straightforward. Drag-and-drop screen customizations and a fully editable instruments bar with day and night modes are just a couple of reasons why the NSX is one of the easiest to use units on the market.

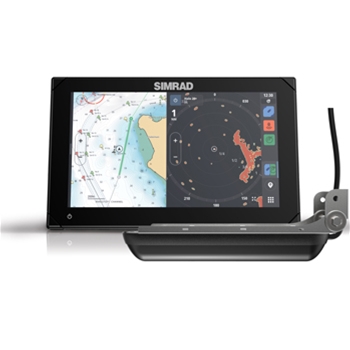

Active Imaging SonarThe Simrad NSX 3009 includes Simrad s Active Imaging 3-in-1 transducer, capable of providing high resolution images 300 ft below and to the sides of your vessel (conditions permitting). Active Imaging 3-in-1 sonar provides CHIRP, DownScan and SideScan sonar all from a single transom mount transducer.

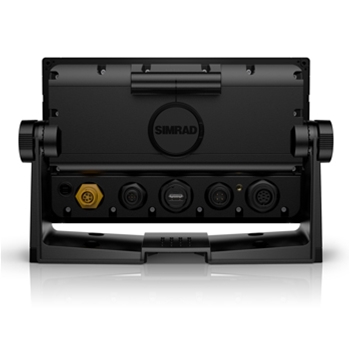

NetworkingThe single network port located on the back of the display allows for connection to Simrad s series of Halo Radars. A single NMEA 2000 port provides connectivity to AIS and NAC-1, NAC-2, NAC-3 and NAC-D autopilots. Currently the NSX series does not support weather accessories. A single USB port enabling modem plug-in for additional device connectivity.
ChartingCMAP Discover X Maps for North America (part number NA-T-200-D-MS) come in the box and include 12 months of free, easy updates- ensuring you always have the freshest data. Discover X maps are exclusive to the Simrad NSX series and provide Full Vector charts, Hi-Res Bathymetry, Custom Depth Shading, Day and Night modes, Tides and Currents, Detailed Marina Port Plans, Harbor and Approach Detail and subscription-free autorouting.
The Simrad NSX 3009 is also compatible with CMAP Discover REVEAL X charts, sold separately and also exclusive to the Simrad NSX series. This additional chart option provides premium features including a Shaded Relief REVEAL layer and Satellite Imagery. The shaded relief REVEAL layer provides 3D rendered land and underwater elevations including areas of ultra-high resolution. Satellite imagery allows for better situational awareness in unfamiliar areas. Due to the high level of detail, Reveal X maps are sold in smaller coverage areas.
If you re looking for a multifunction GPS with a sleek touch display, Simrad network support and detailed Discover X charts, the Simrad NSX is for you!
Simrad NSX 3009 with 3-in-1 Active Imaging Transducer Box Contents
- NSX Display
- Sun Cover
- 3-in-1 Active Imaging Transducer with 25ft. Cable
- Connector Caps
- Power Cable
- Dash Gasket and Fasteners
- Gimbal Bracket
- Quick start and installation guide
- 2-Year Warranty
Simrad NSX 3009 with 3-in-1 Active Imaging Transducer Key Features
- Intuitive TouchScreen
- CMAP Discover Charts
- Easy-to-Use Setup Wizard
- Compatible with Simrad Halo Radars
- DownScan, SideScan and M/H CHIRP Transducer Included
- Size with bracket: 10.35"W x 6.80"H x 3.17“D
- Size without bracket or sun cover: 9.40"W x 5.85"H x 3.17“D
Product Accessories for Simrad NSX 3009 with Active Imaging 3-in-1 Transducer
Navico NMEA 2000 Starter Kit
The Navico NMEA 2000 Starter Kit includes all of the parts neccessary to create a NMEA2000 Network on your boat.
Simrad Halo 24 Dome Radar
The Halo 24 from Simrad offers an industry first 60RPM operation with both long and short range targeting. VelocityTrack Doppler assists in collision avoidance by color coding targets depending on which way they are headed (toward or away from your vessel).
Simrad HALO20+ 36nm Radar
The HALO20+ from Simrad is a compact dome radar with a 36NM range. Built with pulse compression technology, the HALO20+ detects collision hazards and other targets in close range and up to 36 nautical miles away. Includes MARPA target tracking, InstantOn, Lower Power Consumption and more.
Navico Active Imaging 3 in 1 Transom Mount Transducer
Navico's active imaging 3 in 1 transducer pairs with Lowrance HDS LIVE, HDS Carbon and Elite Ti2 displays as well as Simrad GO and NSS Evo3 units and offers M/H CHIRP, DownScan and Sidescan with temperature readings.
Simrad HALO20 24nm Radar
The HALO 20 from Simrad is a compact dome radar with a 24NM range. Built with pulse compression technology, the HALO20 detects collision hazards and other targets in close range and up to 24 nautical miles away. Includes MARPA target tracking, InstantOn, Lower Power Consumption and more.
Simrad NAC-3 Autopilot Core Pack
The NAC-3 Core Autopilot Core Pack from Simrad consists of the High-Current NAC-3 Autopilot Computer, Precision 9 Compass, Rf25N Rudder Feedback and NMEA2000 Starter Kit. Designed for vessels above 35’ in length.
Hydraulic Pump or Mechanical Drive Required
Navico Active Imaging 2 in 1 Transom Mount Transducer
Navico's active imaging 2 in 1 transducer pairs with Lowrance HDS LIVE, HDS Carbon and Elite Ti2 displays and offers DownScan and Sidescan with temperature readings.
Simrad NAC-2 Autopilot Core Pack
The NAC-2 Core Autopilot Core Pack from Simrad consists of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit and is the perfect set-up for hydraulic and mechanical drives on smaller vessels up to 35’ in length.
Hydraulic Pump or Mechanical Drive Required
Simrad NAC-2 VRF Autopilot Core Pack
The NAC-2 Core VRF Autopilot Core Pack from Simrad consists of the low-current NAC-2 autopilot computer, Precision-9 compass designed with Virtual Rudder Feedback. This is the perfect set-up for hydraulic and mechanical drives on smaller vessels up to 35’ in length and eliminates the need for a mechanical rudder feedback.
Hydraulic Pump or Mechanical Drive Required
Simrad NAC-3 VRF Autopilot Core Pack
The NAC-3 VRF Autopilot Core Pack from Simrad consists of the low-current NAC-3 autopilot computer, Precision-9 compass designed with Virtual Rudder Feedback for outboard boats. This is the perfect set-up for hydraulic and mechanical drives on larger vessels over 35’ in length and eliminates the need for a mechanical rudder feedback.
Navico NMEA 2000 Micro T-Connector
The Navico NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone and uses one end of the T-Connector for the drop cable.
