Airmar B175M Thru Hull CHIRP 12-Degree Transducer, for Airmar Mix and Match, or Bare Wire Connection

Free Ground Shipping!

Airmar B175M Thru Hull CHIRP 12-Degree Transducer, for Airmar Mix and Match, or Bare Wire Connection

Airmar B175 1kW medium frequency CHIRP transducer, Mix-and-Match End with no Mix-and-Match cable included. Can also be used for bare wire connection by cutting end and exposing wires. Low profile, bronze thru-hull housing for vessels with deadrises of 8-15 degrees.
  • SKUAIB175C12MMM
  • MAN#B175C-12-M-MM
  • ID#: 4524
Our Price:
$999.95
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 12-Degree, Suitable for 8-15 Degrees
  • Frequency Range: Medium frequency: 85 to 135 kHz, 16-11 Degree Beam Width. 50kHz of Total Bandwidth. Provides CHIRP Sonar.
  • Power Output: 1kW
  • Max Depth: 457m (1500 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 33-feet (10M)
  • Transducer Material: Bronze

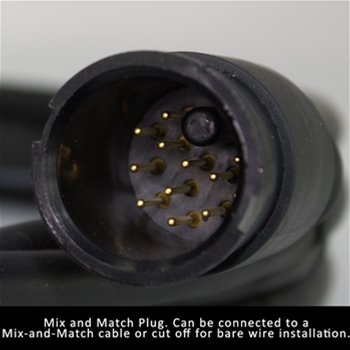

  • Connector Style: Mix-and-Match connector. Ideal for bare wire connection. Does not include Mix-and-Match Cable.
  • Ideal for: Fiberglass or Wood Hulls. Stepped, planning or displacement hulls.
  • Not Recommended for: Steel Hulls
  • B175C Manual Click Here
    B175 Dimensions
