B&G Zeus S 9 Chartplotter

Free 2-Day Shipping!

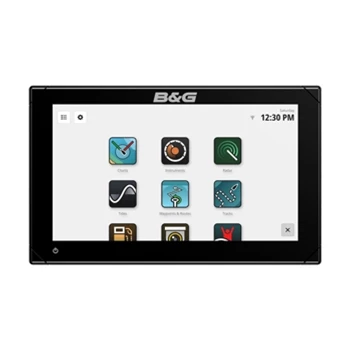

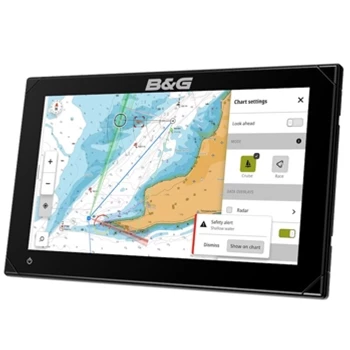

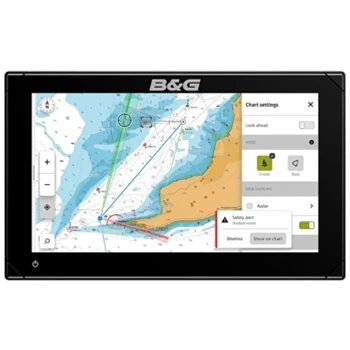

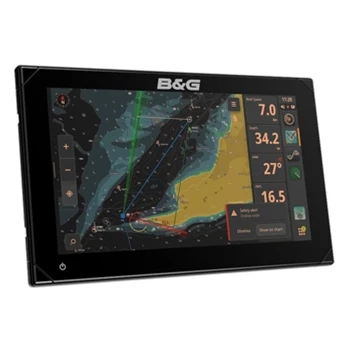

B&G Zeus S 9 Chartplotter

The B&G Zeus S 9 is an intuitive, easy-to-use and feature packed chartplotter! Sailing Modes provide all the data you need at your fingertips while C-MAP Discover X charts for North America provide highly accurate data to aid in navigation and trip planning. Built in WIFI, Ethernet, 1kW Sonar Support and NMEA 2000 allow for full integration with your B&G system.
  • SKUNV15220001
  • MAN#000-15220-001
  • ID#: 7998
(Rating 91)
Our Price:
$1,499.00
Availability:
Usually Ships in 3-5 Days
Shipping:
Free 2-Day Shipping!
Condition:
Brand New

Intuitive Chartplotter with Unique Sailing Features!

Hailed as the most intuitive chartplotter for sailing! The Zeus S series is packed with advanced sailing features, C-MAP charts for North America and easy integration methods for your autopilot, radar, instruments and sensors! The Zeus S has a 9-inch SolarMAX IPS touch display with bright white backlight and 85-degree viewing angles.

Sailing Modes for cruising and racing provide the data you need right at your fingertips. These preset dashboards include exciting features including SailSteer, Laylines, StartLine, Routes, Racing and more.

Designed to be the heart of your sailing system, the Zeus S series has built-in WIFI, Ethernet and NMEA 2000 support. Easily add HALO Radar, Triton Pilot, Triton 2, Nemesis instruments and more! The Zeus S also features one 9 pin Xsonic 1 kW Sonar port. Sonar support includes single channel CHIRP, 50/200 khz, HDI and Active Imaging.

The included C-MAP Discover X charts provide coverage for North America including Safety Alerts against grounding and dangerous objects. Discover X charts include clear, accurate data with tides, currents and more! Upgrade your charting to C-MAP Reveal X charts if you wish to have more detailed information. C-MAP Reveal X charts sold separately.

Download the free B&G App to your compatible smartphone to receive further control and navigation options both on and off the boat!

B&G Zeus S 9 Chartplotter Box Contents

Each B&G Zeus S 9 Chartplotter Comes with:
  • B&G Zeus S 9 Chartplotter
  • U-Bracket
  • 4-Pin Power Cable
  • C-MAP Discover X-North America Map Card
  • Dashboard Mounting Kit
  • Corner Clip Accessory
  • Suncover
  • 2-Year Warranty

B&G Zeus S 9 Chartplotter Key Features

  • (1) 9-Pin XSONIC 1kW Sonar Port, Single Channel CHIRP, 50/200 khz, HDI, Active Imaging Support.
  • (1) Ethernet Port.
  • 1280 x 720 Display Resolution.
  • Includes Award-Winning Sailing Features.
  • Full Integration with HALO Radars, Triton2 Pilots, Triton2 and Nemesis Instruments, Sensors and More.
  • Size: 9.4”W x 5.85”H x 3.17”D
B&G Zeus S Manual Click Here
