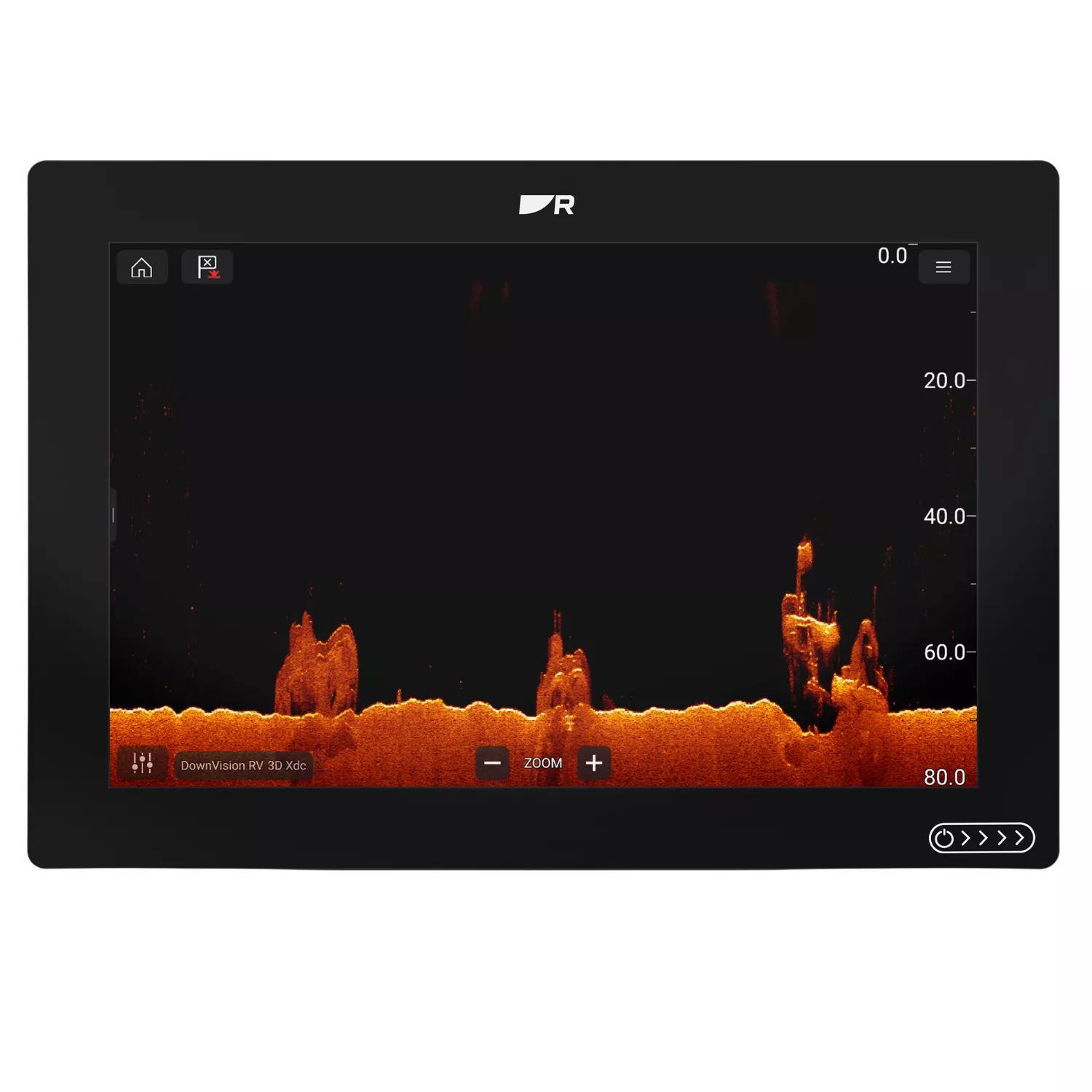

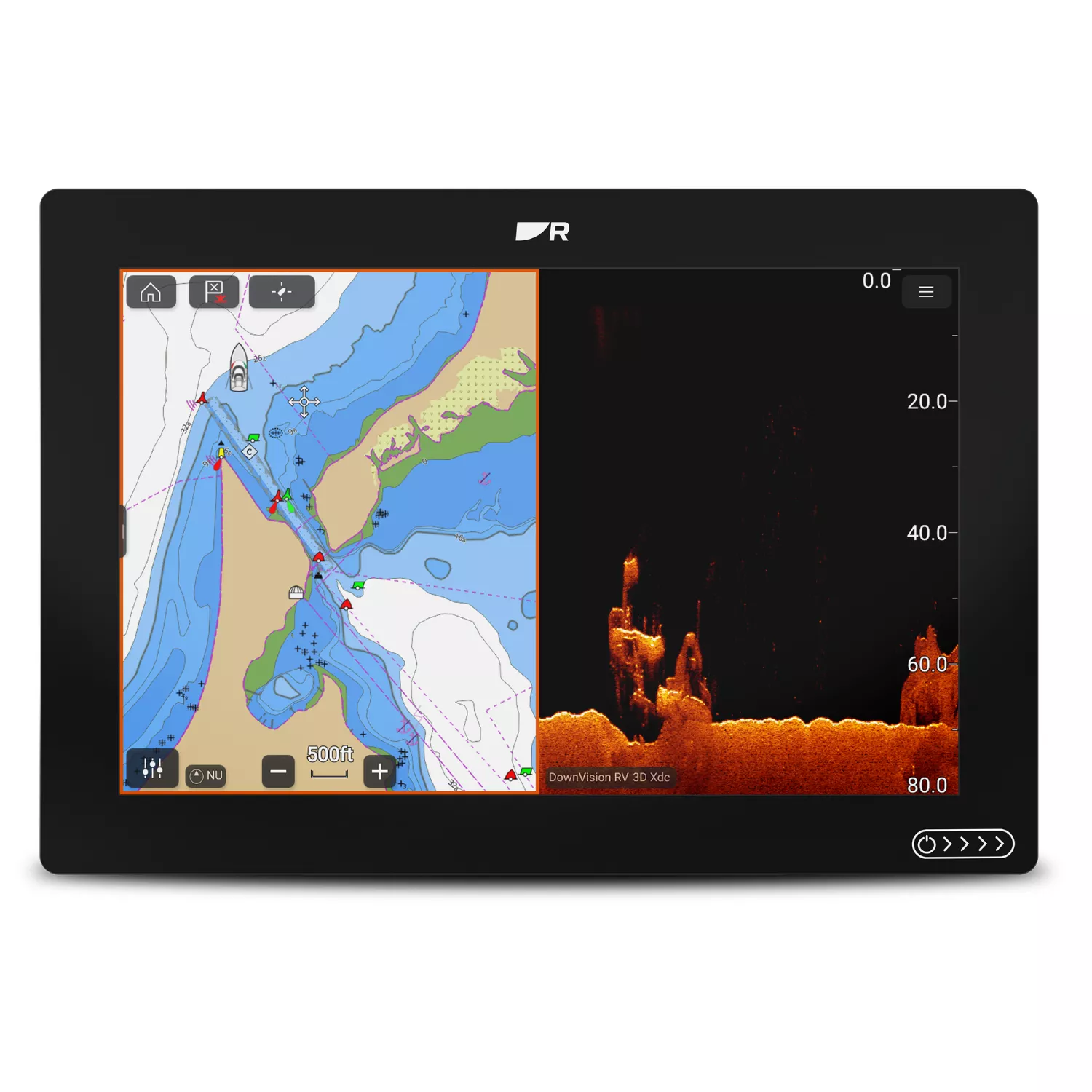

12” Multi-Function Chartplotter with RealVision Sonar Built-In!

The Raymarine Axiom 2 RV 12 inch is a large format multifunction display designed for boaters who require maximum screen space and performance. Powered by a high performance 6 core processor, it delivers up to 30 percent faster chart rendering and smoother system operation across all functions. As an all-in-one system, it integrates chartplotting, sonar, radar, video, and NMEA 2000 networking into a single display, offering complete control and situational awareness.

The system runs on the LightHouse operating system, which provides a clean and intuitive interface for managing all onboard electronics. The Axiom 2 can be used as a standalone display or expanded into a fully networked system using Gigabit RayNet Ethernet, ensuring fast and reliable data sharing between devices. Built in Wi Fi and Bluetooth connectivity support integration with mobile apps and access to a wide range of onboard and entertainment applications.

Navigation capabilities include support for LightHouse Charts with faster redraw speeds and smoother panning. The internal GNSS receiver is compatible with GPS, GLONASS, and Beidou satellite systems, tracking up to 28 satellites simultaneously. With SBAS enabled, the system achieves position accuracy of up to 5 meters. The chartplotter can store up to 10000 waypoints, 250 routes, and 15 tracks, making it suitable for complex navigation planning.

Preloaded with a Worldwide basemap, Raymarine Axiom 2s are fully compatible with optional Mapping for enhanced detail! Choose from Raymarine Lighthouse, Navionics Plus or Platinum Plus maps for coverage wherever your travels take you!

The 12-inch RV model includes built in RealVision sonar, offering SideVision, DownVision, RealVision 3D, and CHIRP sonar capabilities. The system includes multiple CHIRP channels and 600W conventional sonar, enabling wide area scanning and detailed imaging of fish and underwater structures. This integrated sonar system provides a comprehensive underwater view for both anglers and navigators. *Transducer Required for Sonar Features, Sold Separately.

Display performance is enhanced with a 12-inch IPS LCD featuring a resolution of 1280 by 800 and brightness up to 1800 nits for clear visibility in bright sunlight. The HydroTough coating improves touchscreen usability in wet conditions, while the unit is rated IPX6 and IPX7 for water resistance. It operates in temperatures from negative 25 degrees Celsius to 55 degrees Celsius, ensuring durability in harsh marine conditions.

Hardware and connectivity specifications include 64 GB of internal storage and a MicroSDXC card slot for additional chart storage. Networking options include RayNet Ethernet supporting 10 100 1000 Mbit per second, NMEA 2000 via DeviceNet, Wi Fi 802.11 b g n, and Bluetooth 4.0. The unit operates on a 12-volt DC system with a voltage range of 8 to 16 volts and typical power consumption of 18.96 watts. Physical dimensions for trunnion mounting measure 314 mm wide, 217 mm high, and 178 mm deep including cables, making it a full size, feature rich marine electronics solution.
