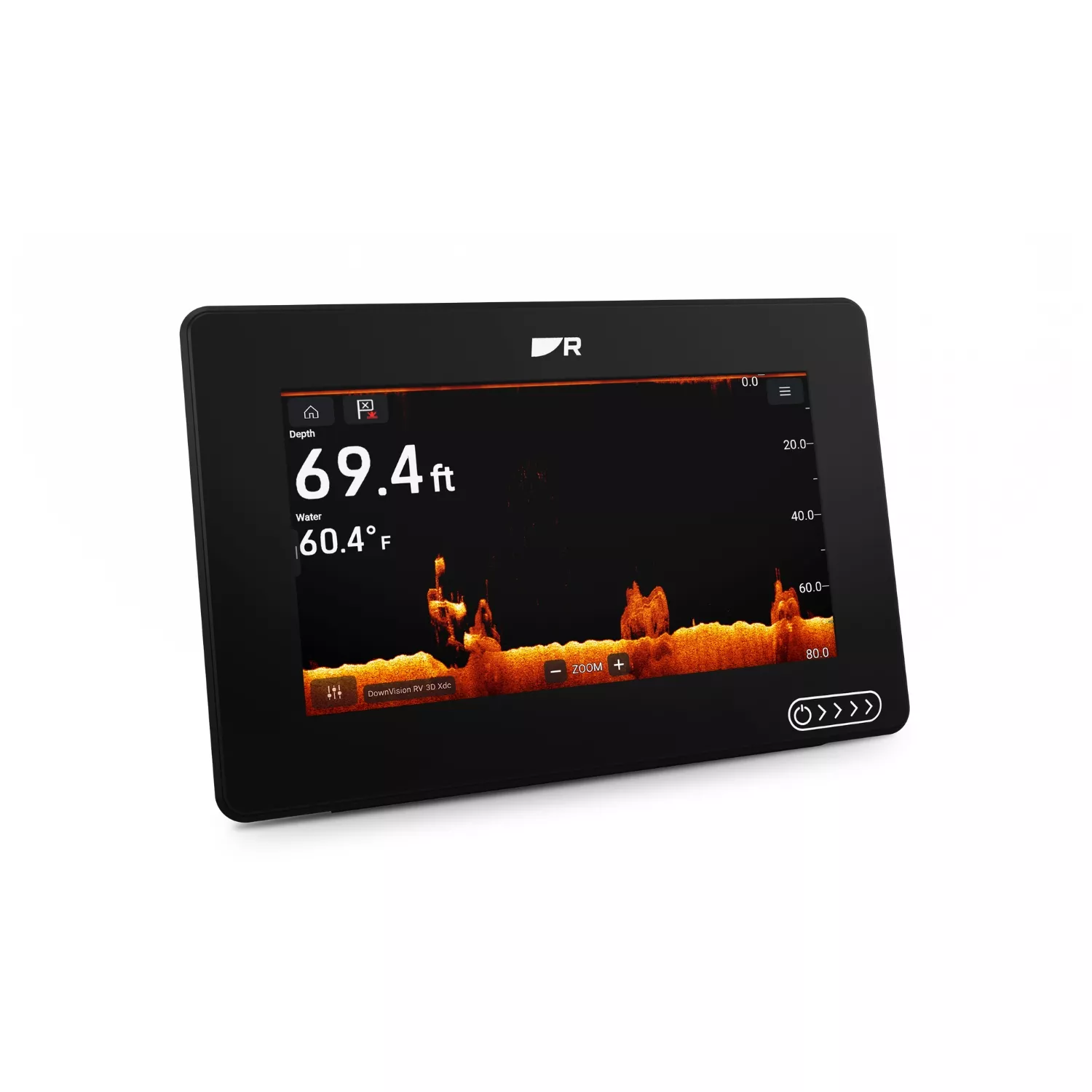

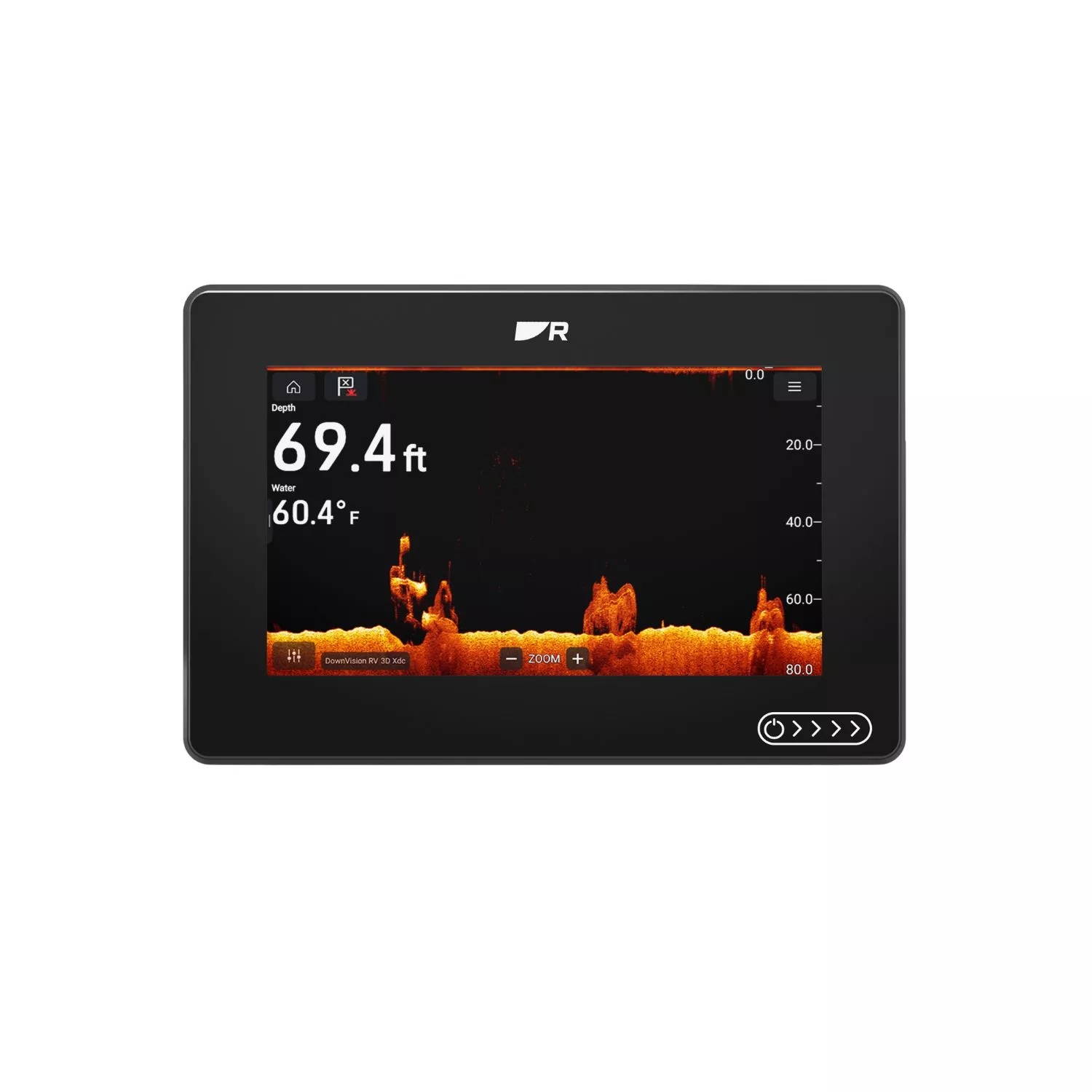

7” Multi-Function Chartplotter with RealVision Sonar Built-In!

The Raymarine Axiom 2 RV 7 inch is a compact multifunction display that combines chartplotting and advanced fish finding into a single, high-performance system. Designed with a next generation hardware platform, it features a 6-core processor that delivers faster response times and up to 30 percent quicker chart rendering for smoother navigation. The unit can operate as a standalone display or as part of a fully networked marine system, bringing together navigation, sonar, radar, video, and NMEA 2000 data into one interface.

At the core of the Axiom 2 is the LightHouse operating system, which provides a simple and unified user experience for complete situational awareness. This interface allows users to control multiple onboard systems from a single screen while maintaining smooth performance across functions. Networking is supported through Gigabit RayNet Ethernet, enabling high speed data sharing between displays and sensors. Built in Wi Fi and Bluetooth connectivity also allow integration with mobile apps and onboard systems, expanding functionality beyond traditional navigation.

For navigation, the Axiom 2 supports LightHouse Charts with improved rendering speeds and smoother panning, helping users move efficiently across chart data. The internal GNSS receiver is compatible with GPS, GLONASS, and Beidou satellite systems, tracking up to 28 satellites simultaneously. Position accuracy is rated at up to 5 meters with SBAS enabled. The system can store up to 10000 waypoints, 250 routes, and 15 tracks, providing ample capacity for route planning and long-distance navigation.

Preloaded with a Worldwide basemap, Raymarine Axiom 2s are fully compatible with optional Mapping for enhanced detail! Choose from Raymarine Lighthouse, Navionics Plus or Platinum Plus maps for coverage wherever your travels take you!

The RV model includes built in RealVision sonar, offering a complete underwater view with SideVision, DownVision, RealVision 3D, and CHIRP sonar technologies. The system includes multiple CHIRP channels along with 600W conventional sonar, allowing users to scan wider areas, detect fish, and clearly identify underwater structures. This integrated sonar capability provides a comprehensive solution for both navigation and fishing applications in a single display.

Display and durability specifications are designed for harsh marine environments. The 7-inch IPS LCD features a resolution of 1024 by 600 with brightness up to 1800 nits for clear visibility in direct sunlight. The HydroTough coating improves touchscreen control in wet conditions, while the unit is rated IPX6 and IPX7 for water resistance. It operates in temperatures ranging from negative 25 degrees Celsius to 55 degrees Celsius, ensuring reliable performance across a wide range of conditions.

Additional hardware specifications include 64 GB of internal storage and a MicroSDXC card slot for chart expansion. Connectivity options include RayNet Ethernet with speeds up to 10 100 1000 Mbit per second, NMEA 2000 via DeviceNet, Wi Fi 802.11 b g n, and Bluetooth 4.0. The unit operates on a 12-volt DC system with a voltage range of 8 to 16 volts and typical power consumption of 9.84 watts for the 7-inch display. Physical dimensions for trunnion mounting measure 9.85” wide, 6.39”high, and 8.58” deep, making it a compact yet fully featured marine electronics solution.
