9” Multi-Function Chartplotter with RealVision Sonar Built-In!

The Raymarine Axiom 2 RV 9 inch is a powerful multifunction display that combines advanced chartplotting and fish finding capabilities in a larger, easy to view format. Built on a next generation platform, it features a 6-core processor that delivers up to 30 percent faster chart rendering and improved overall responsiveness. Designed as an all-in-one solution, the system integrates navigation, sonar, radar, video, and NMEA 2000 networking into a single display, providing complete situational awareness at the helm.

At the core of the system is the LightHouse operating system, offering a streamlined interface that unifies all onboard electronics into one intuitive display. The Axiom 2 can function as a standalone chartplotter or be expanded into a fully networked system using Gigabit RayNet Ethernet, enabling high speed communication between multiple displays and sensors. Built in Wi Fi and Bluetooth connectivity allow integration with mobile apps and access to more than 30 onboard applications, including navigation tools and entertainment features.

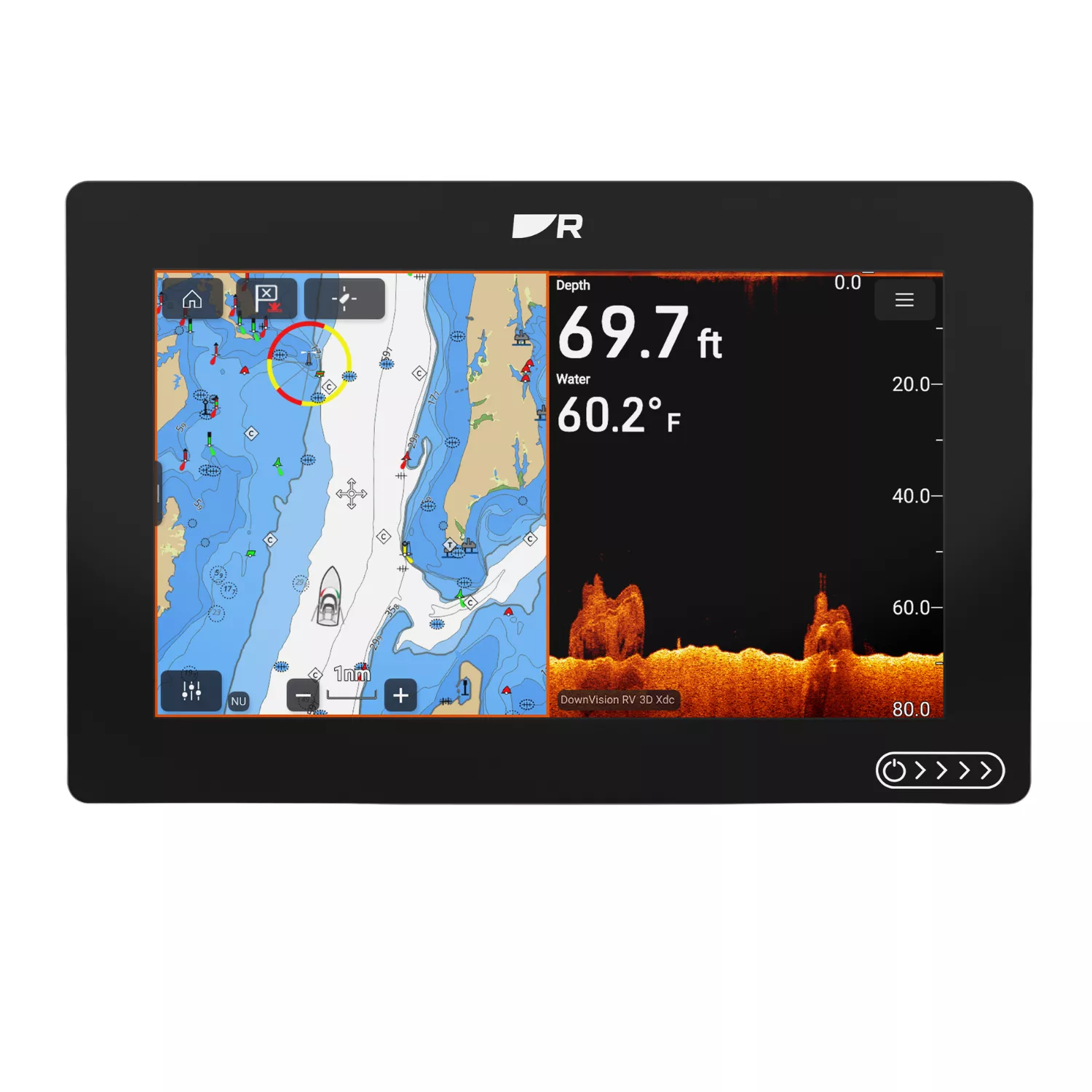

Navigation performance is enhanced through compatibility with LightHouse Charts, offering smoother panning and faster redraw speeds. The internal GNSS receiver supports GPS, GLONASS, and Beidou satellite systems and can track up to 28 satellites simultaneously. Position accuracy is rated at up to 5 meters with SBAS enabled. The system supports storage of up to 10000 waypoints, 250 routes, and 15 tracks, providing extensive capability for route planning and long-distance navigation.

Preloaded with a Worldwide basemap, Raymarine Axiom 2s are fully compatible with optional Mapping for enhanced detail! Choose from Raymarine Lighthouse, Navionics Plus or Platinum Plus maps for coverage wherever your travels take you!

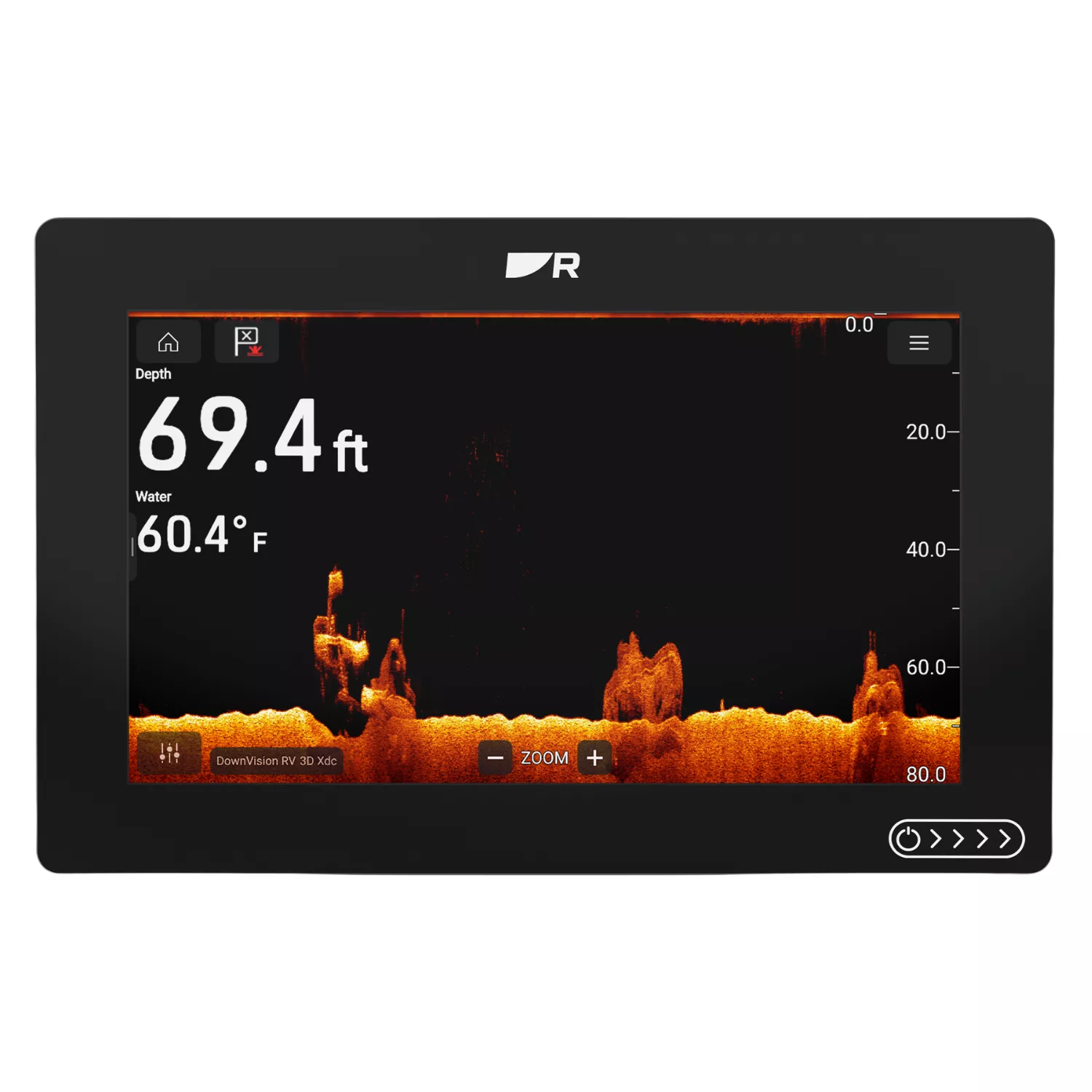

The 9-inch RV model includes integrated RealVision sonar technology, delivering SideVision, DownVision, RealVision 3D, and CHIRP sonar in one system. It features multiple CHIRP channels along with 600-watt conventional sonar, allowing users to scan wide areas, identify fish, and clearly visualize underwater structures. This all-in-one sonar solution provides detailed subsurface imaging for both navigation and fishing applications. *Transducer Required, Sold Separately.

Display specifications include a 9-inch IPS LCD with a widescreen HD resolution of 1280 by 720 and brightness up to 1500 nits for excellent visibility in direct sunlight. The screen features a HydroTough coating that repels water and maintains accurate touch control in wet conditions. The unit is rated IPX6 and IPX7 for water resistance and operates in temperatures ranging from negative 25 degrees Celsius to 55 degrees Celsius, ensuring reliability in demanding marine environments.

Additional specifications include 64 GB of internal storage and a MicroSDXC card slot for chart expansion. Connectivity includes RayNet Ethernet supporting 10 100 1000 Mbit per second, NMEA 2000 via DeviceNet, Wi Fi 802.11 b g n, and Bluetooth 4.0. The unit operates on a 12-volt DC system with a voltage range of 8 to 16 volts and typical power consumption of 11.98 watts. Physical dimensions for trunnion mounting measure 265.03 mm wide, 187.81 mm high, and 178 mm deep including cables, making it a versatile mid-size display solution.
