9” Sunlight Viewable, Keyed Assist, Touchscreen Chartplotter with CHIRP Sonar Capabilities!
A bright 9" Sunlight viewable, keyed assist touchscreen display! Garmin's ECHOMAP UHD2 94sv offers detailed Coastal Charts for exceptional charting along with a built in enhanced CHIRP ClearVu/SideVU sonar system. Rugged and Reliable, the 94sv includes a 12-Pin Transducer Port for connection to a compatible transducer for detailed underwater images. *Transducer Required for Sonar Images, Sold Separately
Preloaded Garmin Navionics+ Mapping for the coastal waters are built-in to every ECHOMAP UHD2 94SV! The integrated chart data covers coastal waters and can easily be enhanced with additional charting via the microSD card slot. Garmin offers several Premium chart options for this unit. Available by region, Garmin Navionics Vision+ charts include both coastal and inland coverage. This exclusive bundle includes (1) Garmin Navionics Vision+ Chart in the region of your choice.Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase.
A advanced internal Sonar System The UHD2 94sv offers CHIRP Sonar with CHIRP ClearVu and CHIRP SideVu for crisp clear underwater images when paired with a compatible transducer. *Transducer Required for Sonar Imaging and Sold Separately. In addition, the 94sv is Livescope compatible offering advanced, Real time sonar images of structure, bait and fish swimming around your boat. Pair your ECHOMAP UHD with a Livescope Sonar system and view underwater detail like never before! Built with AHRS (Attitude Heading Reference System), Livescope ensures your sonar view stays stable even in rough seas! LiveScope Down provides images of structure and swimming fish up to 200' below your boat while the Live Scope Forward will assist you in scouting and locating fish that are swimming ahead of your cast up to 200'. Easily adjustable, the Live Scope can be set to the mode that works best for your fishing needs. With exceptional views and sonar capabilities you can not only see what going on in real time, you may with just a bit of practice even be able to differentiate between fish species! *Livescope System Sold Separately
Available Network options in the 94sv include NMEA2000 and WiFi Connectivity. NMEA2000 allows you to connect and share numerical data across devices such as Autopilots, digital switching, AIS and more. Wi-Fi connectivity is built into every UHD2 63cv and allows your to wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 6", 7 or 9" Chartplotter while also enabling you to wirelessly connect to a Force Trolling Motor (sold separately) to create and follow routes, navigate to waypoints. control speed, check battery and more! *Panoptix LiveScope can not be shared wirelessly.
For an advanced, affordable combination unit look no further than the ECHOMAP UHD2 from Garmin!
Transducer required for sonar performance, sold separately. This unit has a 12 Pin Transducer Connector, Garmin 8 Pin Transducers can be connected with a Garmin 8 to 12 Pin Sounder Adapter Cable.
*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

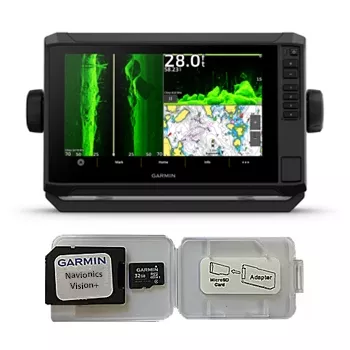

Garmin ECHOMAP UHD2 94sv GN+ Navionics Vision+ Bundle Box Contents
- Garmin ECHOMAP UHD2 94sv GN+
- (1) Garmin Navionics Vision+ Chart Region
- 8 to 12-Pin Transducer Adapter Cable
- Power/Data Cable
- Tilt/Swivel Mount
- Flush Mount
- Protective Cover
- Hardware
- Documentation
- Two Year Warranty
Garmin ECHOMAP UHD2 94sv GN+ Key Features
- 9” Sunlight Viewable, Keyed-Assist Touchscreen
- NMEA 2000 Connectivity to Autopilots, Digital Switching, FusionLink and More
- Built-In Garmin Navionics+ Maps cover Coastal Waters with Navionics Detail
- Wirelessly share Sonar, Waypoints and Routes with Built-In WiFi (*Transducer Required for Sonar Capabilities)
- Livescope Sonar Compatible
- Size: 10.4"W x 6.5"H x 3.2“D
